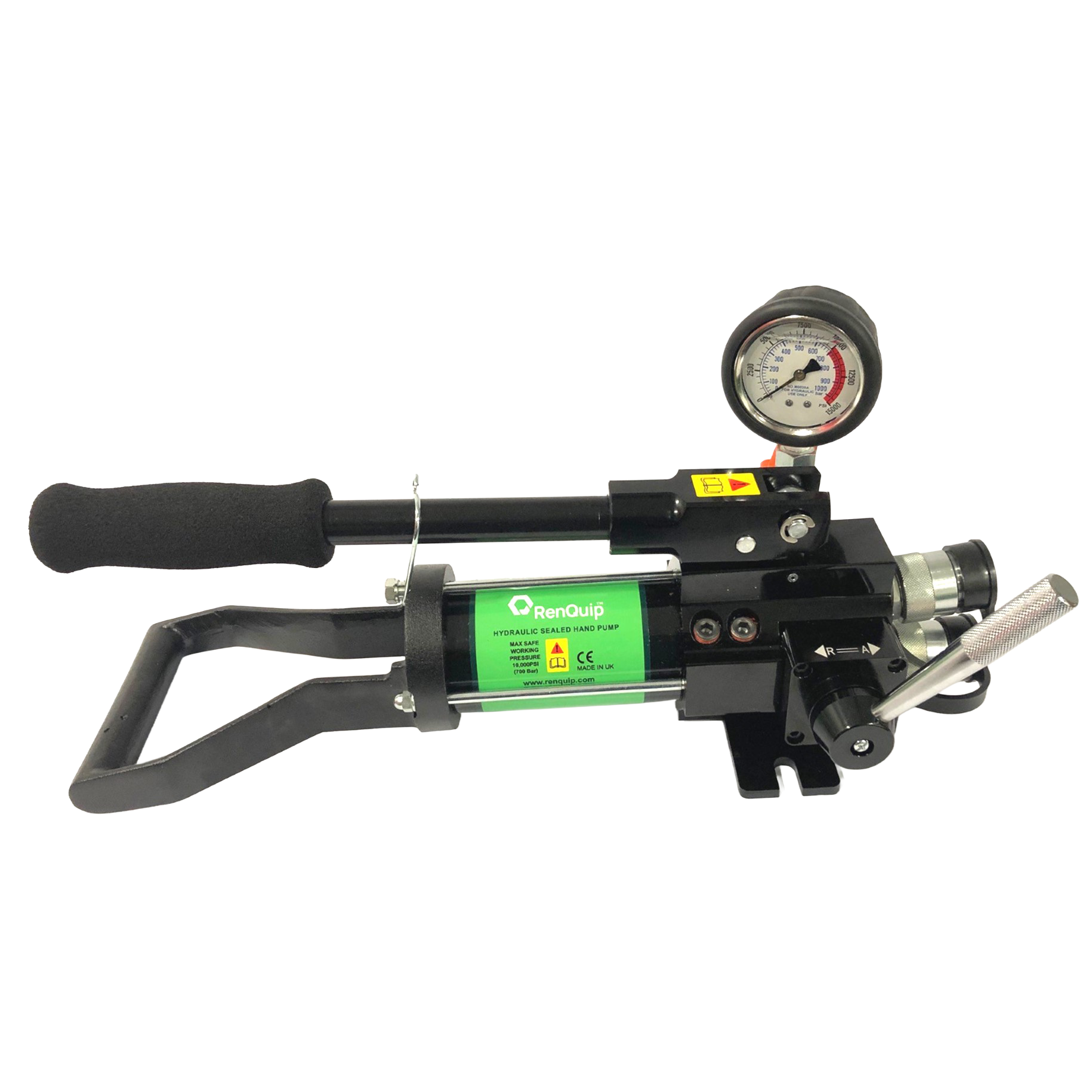

PHD – Double Acting Sealed Hydraulic Hand Pump Range

The PH***D sealed hydraulic hand pumps are designed to pump hydraulic oil under pressure into 700bar(10,000psi) Double Acting hydraulic systems.

The pumps are equipped with an advance port and a retract port, moving the lever to the advance position and cycling the pump will oil to flow from the pump through the advance port under pressure and oil to return to the reservoir through the return port.

Moving the control lever to the retract position and cycling the pump will allow oil to flow from the pump through the retract port under pressure and oil to return to the reservoir through the advance port.

When the control lever is set to the middle position both ports allow oil to flow back to the pump reservoir and the system will be depressurised.

All RenQuip PH series hand pumps are two stage and fitted with a sealed reservoir (please see description tab for the operational benefits)

It is important that the correct capacity of pump is selected for the system it is intended to operate.

  • The PH300D has a reservoir capacity of 300cc
  • The PH580D has a reservoir capacity of 5800cc
  • The PH1100D has a reservoir capacity of 1100cc

The Pumps are supplied complete with hydraulic pressure gauges, gauge block and screw couplers.

SKU: PH300D / PH580D / PH1100D Category:

The PH****S was initially designed to suit the operation of flange spreaders and to prevent the accidental ingress of air into the hydraulic system when tradition types of pumps where operated when not level – resulting in the requirement to fully bleed the system to resume operations.

When working in limited access areas it can be challenging to keep the pump level – this is resolved with the sealed reservoir design

Sealed Reservoir

The PH pumps are equipped with a flexible oil reservoir that contracts when oil is pumped from the reservoir into the system – this removes the requirement for an air vent that can be found on traditional solid reservoir pumps and eliminates the possibility of accidental oil spillage from the reservoir when the pump is not level.

The flexible reservoir also enables the pump to be used in any orientation without the risk of air entering the hydraulic system. It also prevents contamination or debris entering the Hydraulic system from the atmosphere in which the pump is being operated and therefore protecting the pump and the hydraulic system it is pressurising.

Pressure Relief Valve

All RenQuip hand pumps incorporate an internal relief valve that is factory set to the maximum safe working pressure, when the system reaches this pressure the relief valve opens and further cycling of the pump will only deliver oil back to the reservoir and not into the system – this protects the system from being over pressurised.

Two Stage Pump Piston

The PH range of Hydraulic pumps all incorporate a two stage piston design, this enables a larger volume of oil to be pumped per handle stroke at lower pressure (200psi) giving faster system actuation, above 200psi a smaller volume of oil is pumped per handle stroke to ultimately achieve the safe working pressure whilst minimising the required handle force.

PH300S- Maximum Working Pressure

700Bar (10,000psi)

PH300S - OIL Capacity

300cc (21.4 in3)

PH300S - Fast Advance Pressure (1st speed)

13.8Bar (197psi)

PH300S - Maximum Handle force (@700 bar)

33kgf (72lbf)

PH300S - Port Size (Twin Port)

3/8” NPT

PH300S - Pump Weight

4.5Kg (10lb)

PH300S - Pump Dimensions

151mm (5.9”) x 182mm (7.2”) x 554mm (21.8”)

PH580S - Maximum Working Pressure

700Bar (10,000psi)

PH580S - OIL Capacity

580cc (35 in3)

PH580S - Fast Advance Pressure (1st speed)

13.8Bar (197psi)

PH580S - Maximum Handle force (@700 bar)

33kgf (72lbf)

PH580S - Port Size (Twin Port)

3/8” NPT

PH580S - Pump Weight

5Kg (11lb)

PH580S - Pump Dimensions

151mm (5.9”) x 182mm (7.2”) x 643mm (25.3”)

PH1100S - Maximum Working Pressure

700Bar (10,000psi)

PH1100S - OIL Capacity

580cc (35 in3)

PH1100S - Fast Advance Pressure (1st speed)

13.8Bar (197psi)

PH1100S - Maximum Handle force (@700 bar)

21kgf (46lbf)

PH1100S - Port Size (Twin Port)

3/8” NPT

PH1100S - Pump Weight

6Kg (13lb)

PH1100S - Pump Dimensions

151mm (5.9”) x 182mm (7.2”) x 867mm (34.1”)

Kit Contents Image
1 x PH300D/PH580D/PH1100D Sealed Double Acting Hand Pump
1 x Hydraulic Pressure Gauge
2 x 3/8” Female Half Couplers with dust caps
1 x Instruction Manual
