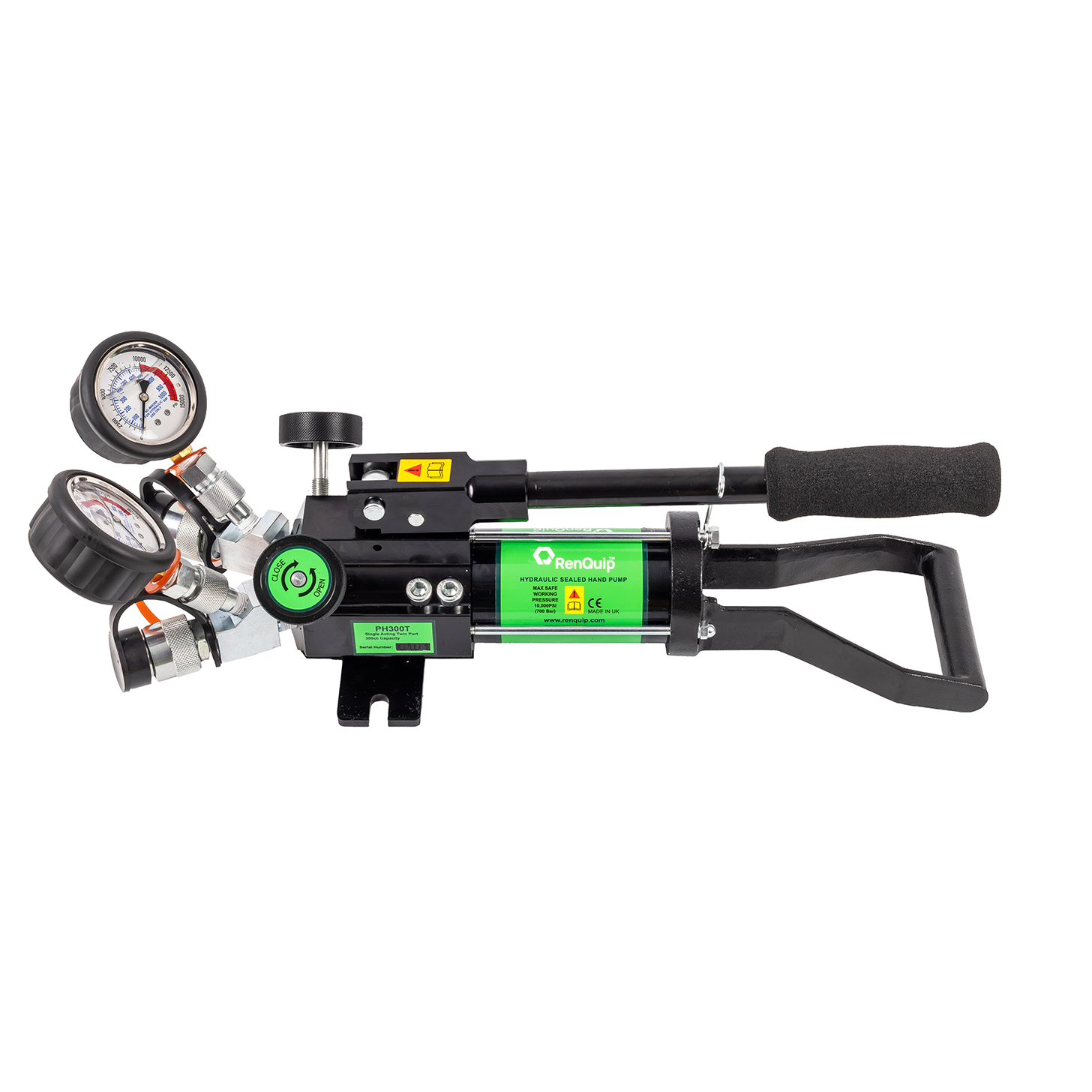

PHT – Twin Port Sealed Hydraulic Hand Pump Range

The PH***T sealed hydraulic hand pumps are designed to pump hydraulic oil under pressure into 700bar(10,000psi) single acting hydraulic systems.

The Twin outlet ports enable the operator to control 2 hydraulic system independently or simultaneously, if both control valves are opened the pressure in both systems will be equal.

If one control valve only is opened and the pump is cycled this will increase the pressure in the system with the open valve only, If one valve only is open and the release valve is opened this will reduce the pressure in the system with the open valve only.

The twin port pumps are ideal for use with 2 spreading wedges or when lifting with 2 cylinders, allowing the operator to keep the load level.

All RenQuip PH series hand pumps are two stage and fitted with a sealed reservoir (please see description tab for the operational benefits)

It is important that the correct capacity of pump is selected for the system it is intended to operate.

  • The PH300T has a reservoir capacity of 300cc
  • The PH580T has a reservoir capacity of 5800cc
  • The PH1100T has a reservoir capacity of 1100cc

The Pumps are supplied complete with hydraulic pressure gauges, gauge block and screw couplers.

SKU: PH300T / PH580T / PH1100T Category:

The PH****T was intially designed to suit the operation of 2 flange spreaders simultaneously, this pump removes the requirement for a separate manifold and conecting hose reducing the risk of leaks and coupler issues.

Pressure Relief Valve

All RenQuip hand pumps incorporate an internal relief valve that is factory set to the maximum safe working pressure, when the system reaches this pressure the relief valve opens and further cycling of the pump will only deliver oil back to the reservoir and not into the system – this protects the system from being over pressurised.

Sealed Reservoir

The PH pumps are equipped with a flexible oil reservoir that contracts when oil is pumped from the reservoir into the system – this removes the requirement for an air vent found on solid reservoir pumps and eliminates the possibility of accidental oil spillage from the reservoir when the pump is not level.

The flexible reservoir also enables the pump to be used in any orientation without the risk of air entering the hydraulic system. It also prevents contamination or debris entering the Hydraulic system from the atmosphere in which the pump is being operated therefore protecting the pump and the hydraulic system it is presurising.

Two Stage Pump Piston

The PH range of Hydraulic pumps all incorporate a two stage piston design, this enables a larger volume of oil to be pumped per handle stroke at lower pressure (200psi) giving faster system actuation, above 200psi a smaller volume of oil is pumped per handle stroke to ultimately achieve the safe working pressure whilst minimising the required handle force.

PH300T - Maximum Working Pressure

700Bar (10,000psi)

PH300T - OIL Capacity

300cc (21.4 in3)

PH300T - Fast Advance Pressure (1st speed)

13.8Bar (197psi)

PH300T - Maximum Handle force (@700 bar)

33kgf (72lbf)

PH300T - Port Size (Twin Port)

3/8” NPT

PH300T - Pump Weight

5.5Kg (12.1lb)

PH300T - Pump Dimensions

151mm (5.9”) x 186mm (7.3”) x 554mm (21.8”)

PH580T - Maximum Working Pressure

700Bar (10,000psi)

PH580T - OIL Capacity

580cc (35 in3)

PH580T - Fast Advance Pressure (1st speed)

13.8Bar (197psi)

PH580T - Maximum Handle force (@700 bar)

33kgf (72lbf)

PH580T - Port Size (Twin Port)

3/8” NPT

PH580T - Pump Weight

6Kg (13.2lb)

PH580T - Pump Dimensions

151mm (5.9”) x 186mm (7.3”) x 643mm (25.3”)

PH1100T - Maximum Working Pressure

700Bar (10,000psi)

PH1100T - OIL Capacity

580cc (35 in3)

PH1100T - Fast Advance Pressure (1st speed)

13.8Bar (197psi)

PH1100T - Maximum Handle force (@700 bar)

21kgf (46lbf)

PH1100T - Port Size (Twin Port)

3/8” NPT

PH1100T - Pump Weight

7Kg (15.4lb)

PH1100T - Pump Dimensions

151mm (5.9”) x 186mm (7.3”) x 867mm (34.1”)

Kit Contents Image
1 x PH300T/PH580T/PH1100T Sealed Hydraulic Hand Pump
2 x Hydraulic Pressure Gauge
2 x Hydraulic Gauge Adaptor
2 x 3/8” Female half screw coupler
1 x Instruction Manual
