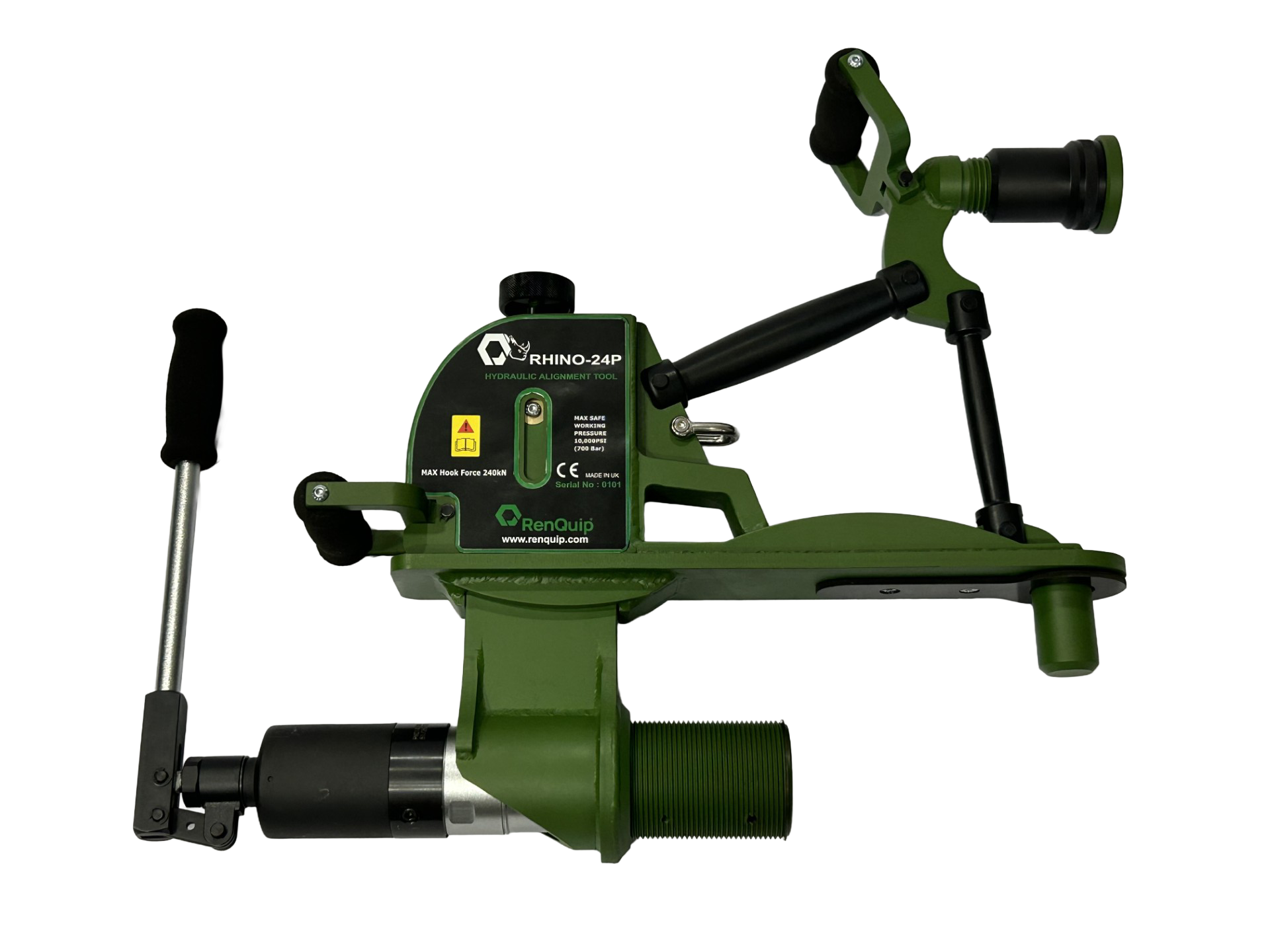

RHINO-24P Hydraulic Flange Alignment Tool

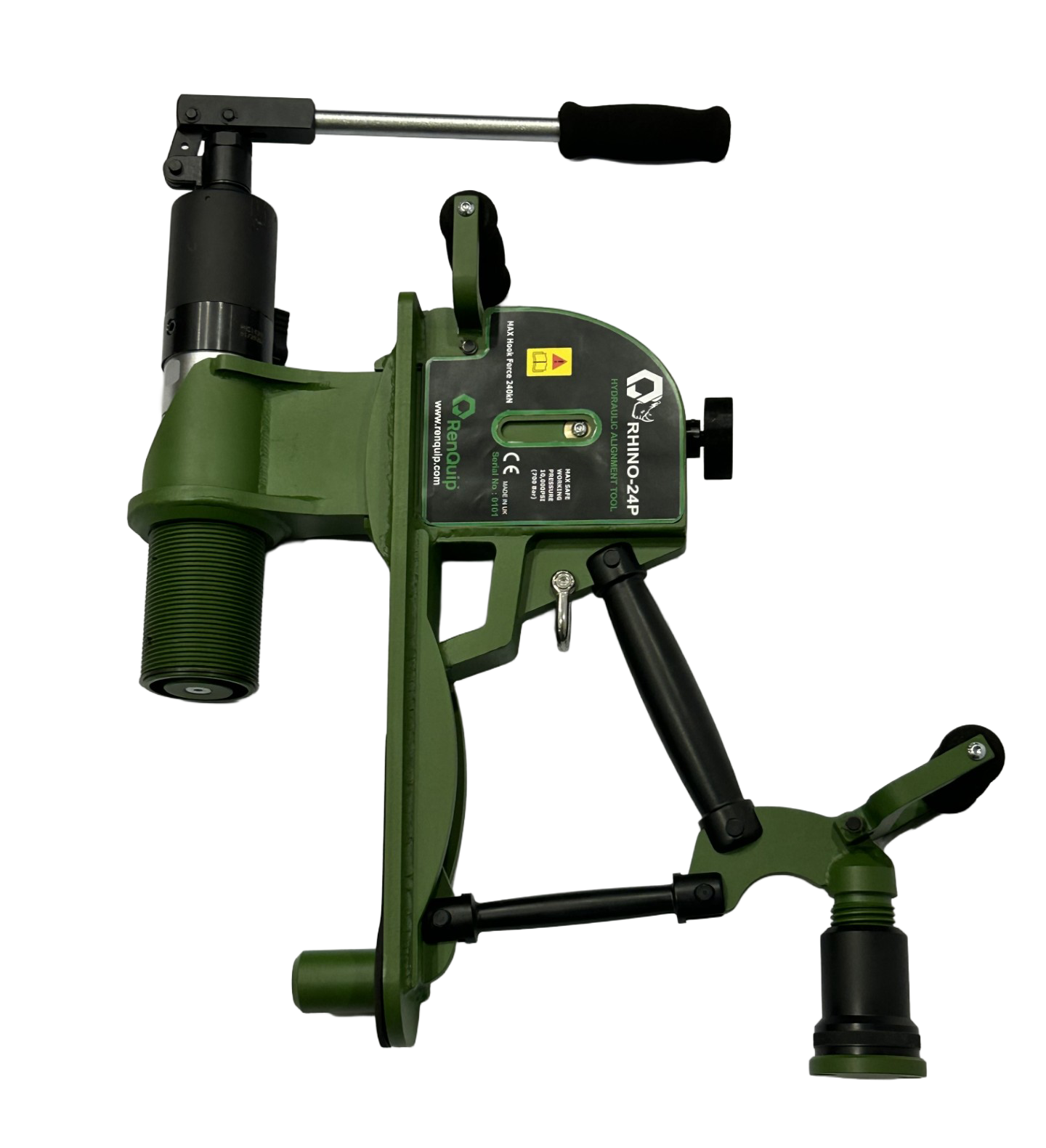

RHINO-24P Flange Alignment Tool
RHINO-24P - Hydraulic Flange Alignment Tool - Image 3
RHINO-24P Hydraulic Flange Alignment Tool
RHINO-24P - Hydraulic Flange Alignment Tool - Image 5
RHINO-24P - Hydraulic Flange Alignment Tool - Image 6

RenQuip RHINO-24P Hydraulic Flange Alignment Tools are designed to resolve misalignment in Wind Turbine Tower bolted flange joints.

During Wind Turbine Tower construction, assembly and installation, the RenQuip RHINO-24P can correct:

Bolt-hole misalignment
(when the tower sections of the turbine towers are not Axially aligned).

De-ovalizing
(when the flanges are not truly concentric to the axis of the tower due to deformation or manufacturing tolerances).

The RenQuip RHINO-24P can produce a maximum reaction alignment force of 240kN when the maximum hydraulic pressure of 10,000psi (700Bar) is generated in the tool.

Engineered for the Wind Sector but capable of aligning flanges across EVERY SECTOR!

SKU: RHINO-24P Category:

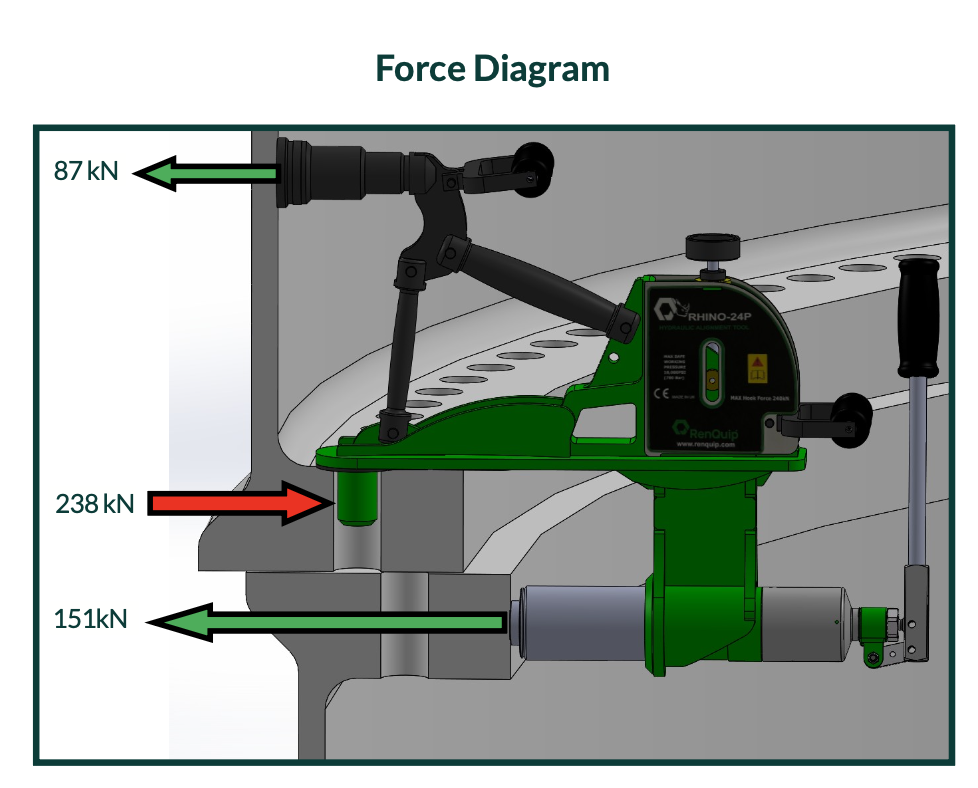

The RHINO-24P uses a hydraulic cylinder to apply a force to the diameter of one flange and creates a reaction force on the bolt hole of the opposite flange. These forces push and pull the flanges into Alignment. A maximum reaction force of 240kN is produced when 10,000psi (700Bar) of pressure is generated in the hydraulic system through the integrated hand pump.

All RenQuip Alignment tools are designed to be used in conjunction with RenQuip Flange Spreading tools.

The Tool is lightweight and portable making it ideal for use in remote locations.

If more force is required multiple tools can be used.

All RenQuip tools are manufactured from the highest quality materials and 100% load tested resulting in highly durable, low maintenance products.

Maximum Hook Force

283 Kn

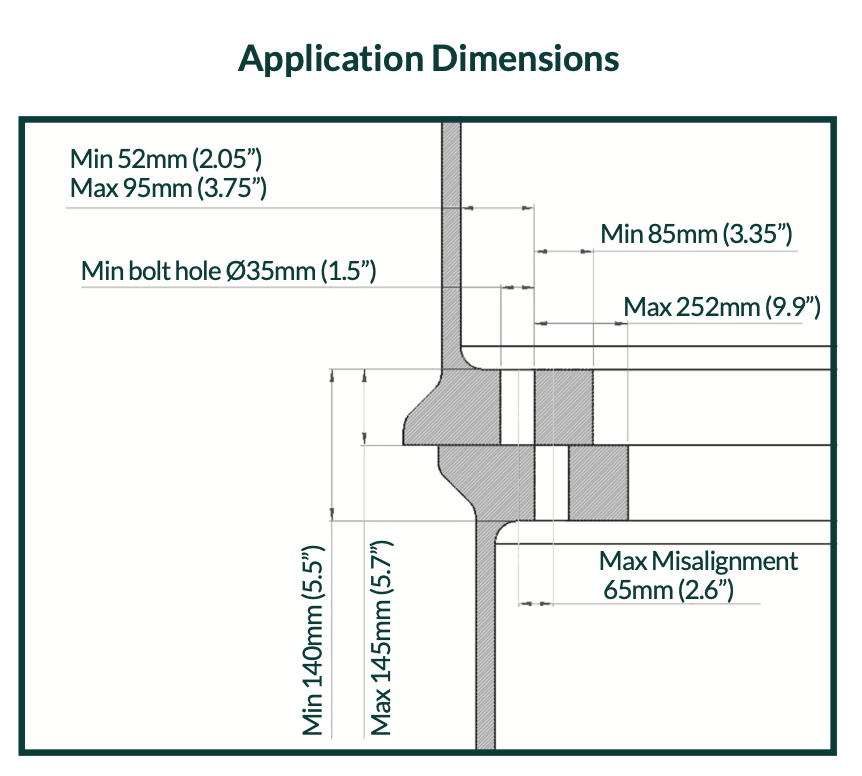

Minimum Bolt Hole Diameter

37mm (1.5”)
Maximum Wing Reach

164mm (6.5”)
Maximum Drop Leg Reach

95mm (3.7”)
Tool Dimensions

478mm x 615mm x 124mm (18.8” x 24.2” x 4.8”)
Tool Weight

21Kg (46.2lbs)
Kit Weight

34Kg (74.9lbs)
Kit Dimensions

770mm x 570mm x 210mm (30.3” x 22.4” x 8.2”)

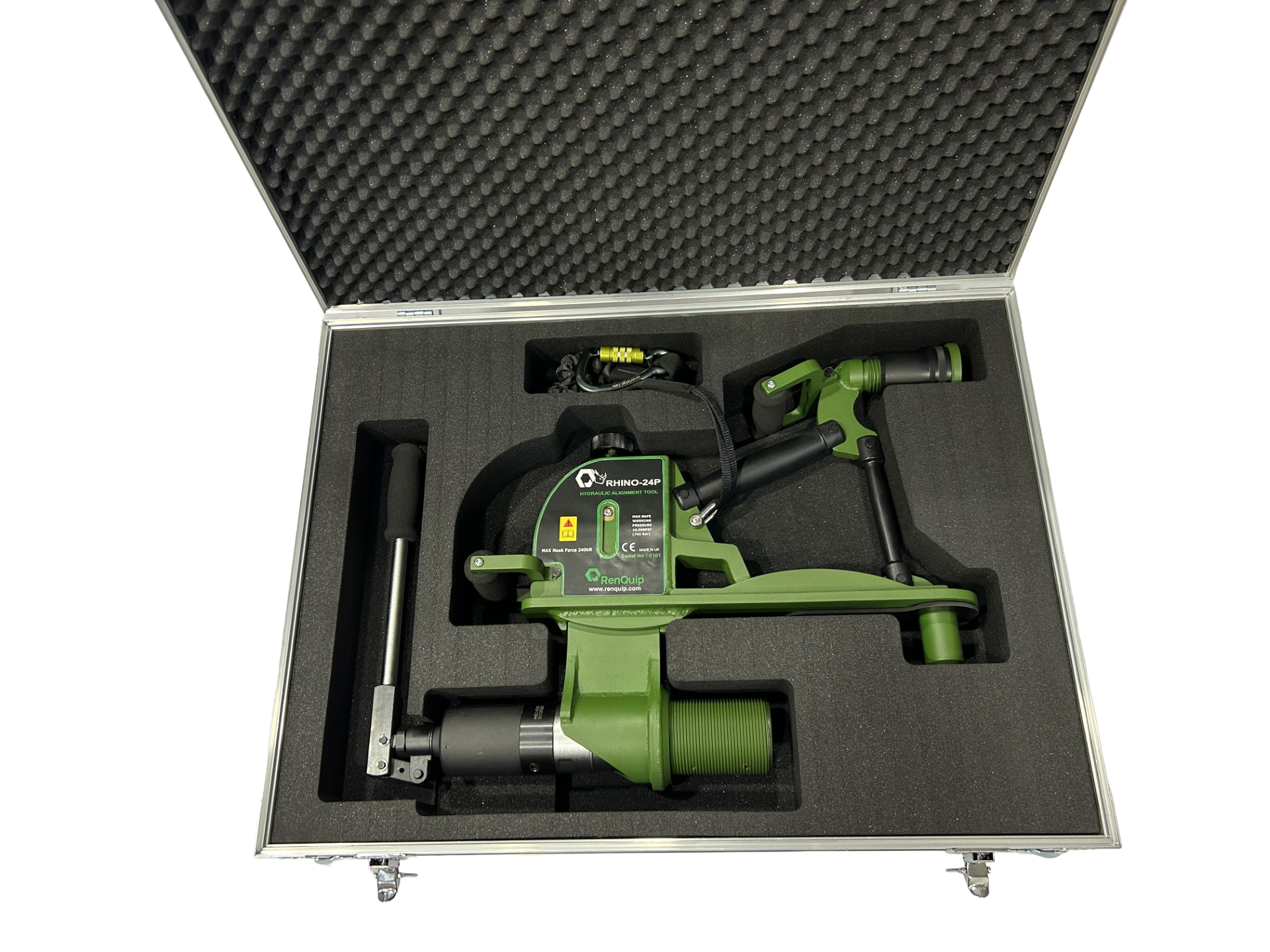

Kit Contents Image
1 x RHINO-24P Tool
1 x Instruction Manual
1 x Safety Lanyard
1 x Storage and Transport Case
