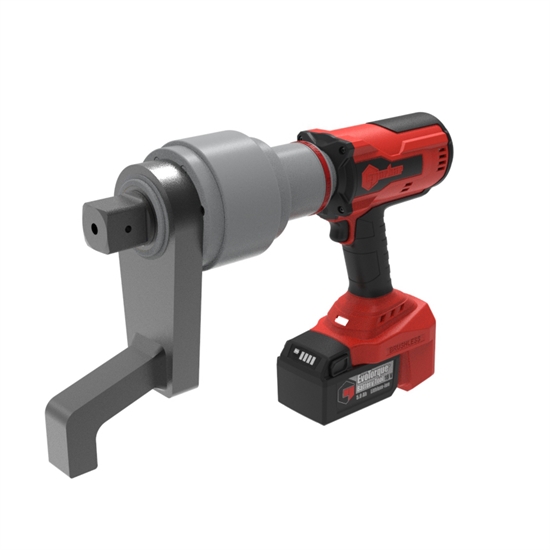

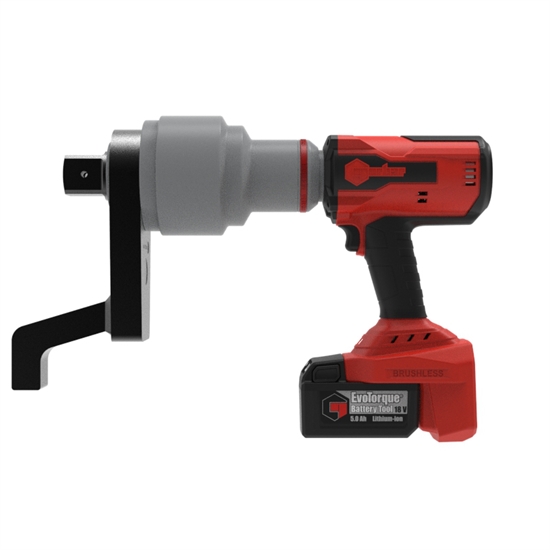

EBT-119-7000 – EvoTorque® Battery Tool (EBT) 181481
The EvoTorque® Battery Tool (EBT) features a new brushless motor, data memory and data transfer capabilities. Norbar has combined this with their respected gearboxes to deliver a range of fast, reliable, and accurate battery torque tools.
Features.
- Intelligent joint sensing technology ensures precise torque application, preventing over-torque and increasing accuracy
- Best-in-class Norbar-designed gearbox ensures reliability and durability in the toughest environments
- Transducer-controlled battery powered torque tool designed for accurately applying torque to threaded fasteners
- Unique ‘intelligent joint sensing’ technology continually measures the joint during tightening and when necessary and employs dynamic braking to avoid torque over-shoot due to motor inertia’
- Safe to start’ button ensures hands are safely positioned at start up
- Tool is not constrained by power cable or hose, improving safety, convenience and versatility
- The industrial motor used by the EBT gives long life with minimal motor service requirement
- Both accuracy and repeatability of ±3% of the setting within the calibrated range
- 18V, 5.0Ah battery and efficient motor give outstanding fastening performance per charge
- OLED display ensures visibility in all conditions
- High powered LED to illuminate application
- Complementary PC software ‘EvoLog’ for data management and tool configuration
- Results can be output in CSV (comma-separated values) format for users not able to use EvoLog
- ‘Usage’ counter gives the ability to see the amount of times the tool has been used since the last reset
- Optional ‘Ease of Use’ functionality when in ‘Torque Only’ mode, minimising operator error
- Optional ‘Relax Mode’ feature automatically reverses tool following joint completion until the tool becomes free or the trigger is released, minimising the chance of fastener and reaction ‘locking’ in place
- Supplied with a traceable calibration certificate for torque and angle as standard
- Torque, Torque & Angle and Torque Audit modes available
- Software can be updated remotely, without the need to return the product to Norbar
- Quiet : Noise level : 79.1dB(A), with an uncertainty K = 3dB, when free-running
- Vibration : Does not exceed 2.5m/s² (highest measured under test : 0.9m/s²)
- “Made in the UK”
