WJ19K – Hydraulic Lifting Wedge Jack Single Tool Kit

The WJ19K is a hydraulic lifting wedge tool kit used to lift heavy loads that have a small access gap under the load.

The WJ tools are a popular choice when lifting and moving heavy workshop machinery and can be used in conjunction with skates and when leveling heavy gearboxes or process machinery.

The kit contains a WJ19K lifting wedge Tool, stepped block and safety block but a hydraulic pump (please see our Pump section) and hose will be required to operate the tool, it is packaged in a robust carry case for easy transport and storage.

The WJ19K:

  • Requires a minimum access gap of 9.5mm (0.37”)
  • The WJ19K produces a maximum lifting force of 183kN (41140lbf) when the maximum hydraulic pressure of 700bar (10,000PSI) is applied

A powerful and portable Hydraulic tool, the WJ19K weighs only 8.5Kg (18.7lbs) if a greater lifting force is required multiple tools can be used.

SKU: WJ19K Category:

The WJ19 tool is design to enter the gap below a load to push the load upwards to increase access for a secondary lifting/moving device or to enable levelling of the load / machine.

The WJ19 tools can be used in any orientation so they can also be used to push loads provided there is a suitable surface to react against often utilised in the construction industry for accurate alignment of sections.

They are also used in flange spreading and dismantling applications where there are dissimilar flange diameters or flanges connected to valve blocks.

It is highly recommended that multiple tools are used to ensure stability.

The WJ19 is actuated by hydraulic pressure that pushes a piston creating a linear force on the internal wedge – the internal wedge then forces the top plate of the tool away from the body creating a pushing force.

Using high pressure hydraulics allows the operator to generate very high spreading forces with a hand pump (please see the RenQuip pump range) – this removes the requirement for an external power source.

RenQuip WJ19K Lifting Wedge Tools are designed to be used in conjunction with RenQuip Hydraulic Hand Pumps.

The Tool is lightweight and portable making it ideal for use in remote locations.

If more force is required greater multiples of tools can be used.

All RenQuip tools are manufactured from the highest quality materials and 100% load tested resulting in highly durable, low maintenance products.

Maximum Lifting Force

183kN (41140 lbf)

Maximum Applied Pressure

700Bar 10,000PSI

Maximum Lifting Distance (with stepped blocks)

67.5mm (2.66”)

Minimum Access Gap

9.5mm (0.37”)

Jaw Width

67mm (2.64”)

Maximum Wedge Protrusion

39mm (1.54”)

Tool Weight

8.5Kg (18.7lbs)

Tool Dimensions

105mm x 135mm x 410mm (4.1” x 5.3” x 16.1”)

Kit Weight

13Kg (28.7lbs)

Kit Dimensions

580mm x 340mm x 180mm (22.8” x 13.4” x 7.1”)

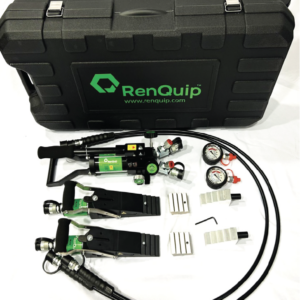

Kit Contents Image
1 x WJ19K Tool
1 x Safety Block
1 x Safety Lanyard
1 x Stepped Blocks with securing screw and allen key
1 x Instruction Manual
1 x Robust moulded carry case
