The freedom and flexibility of cordless operation combined with industrial torque power.

With the introduction of the VT Series, your ability to torque industrial fasteners has now become as simple as a quick charge away with the first ever battery powered torque wrench. The VOLTA has been engineered to master any application effortlessly. Fully charged in under 60 minutes, the VOLTA’s lithium battery provides enough power to take on hundreds of fastenings with no hoses or cords to limit your reach. Within the VOLTA is a digital motor vectoring system that provides accurate and repeatable torque throughout each model’s full range capabilities. The VOLTA exemplifies the durability, reliability and safety that has embodied every industrial wrench crafted by TorcUP since the company’s founding in 1996.

The Volta’s precision-engineered brushless motor delivers efficiency, longer run-time and extended durability, while its configurable torque range capabilities ensure ease of use and repeatability. The tool’s internal brushless technology also allows the wrench to run cooler, providing bolting application safety and versatility in harsh environments. Additional features include digital display, torque memory settings, automatic reaction arm release and ft/lb to Nm conversion.

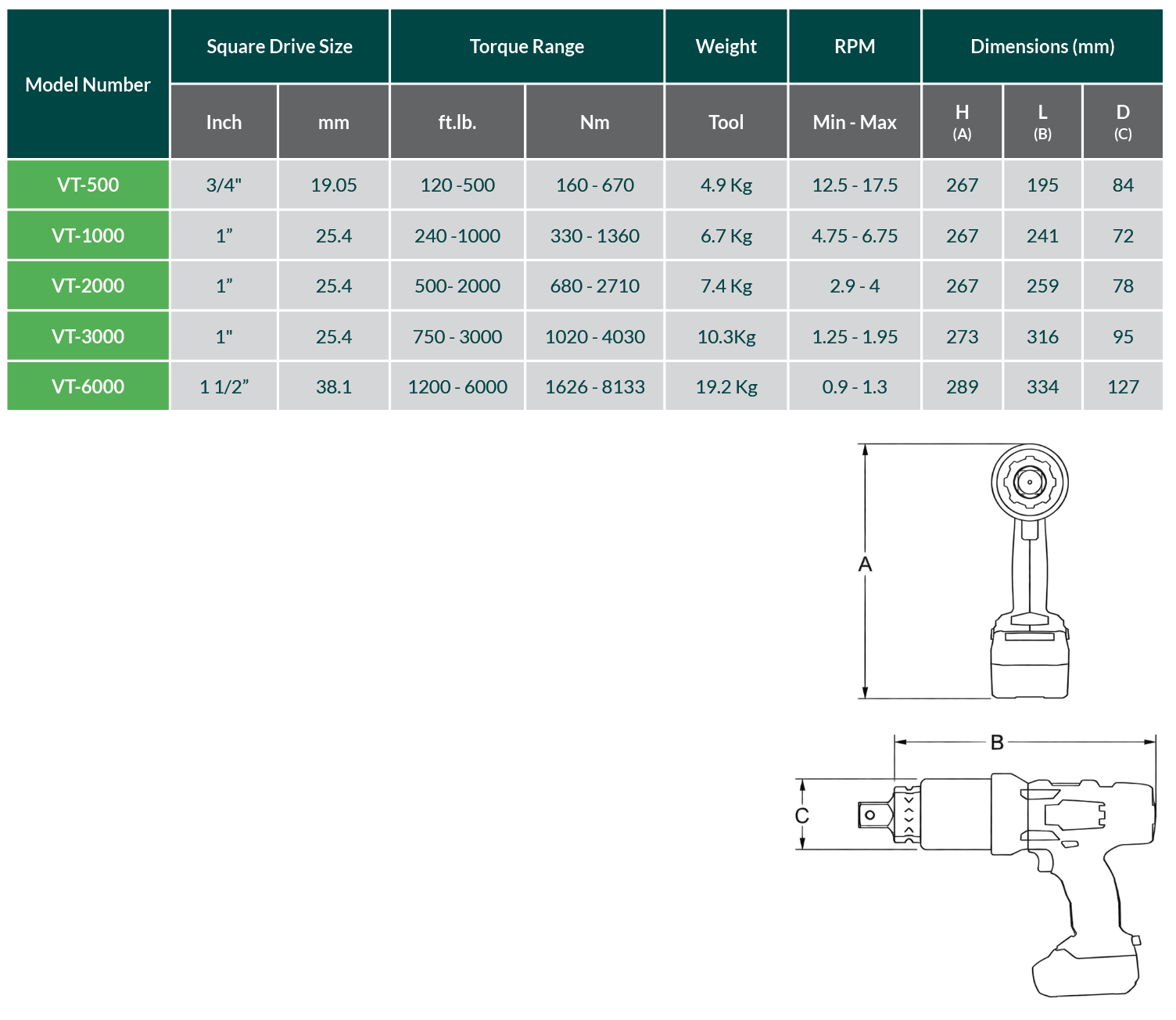

SKU: See Chart for Details Category:

Cutting-Edge internal brushless technology:

• Made in the USA
• Five Models From 120 lbf-ft to 6,000 lbf-ft.

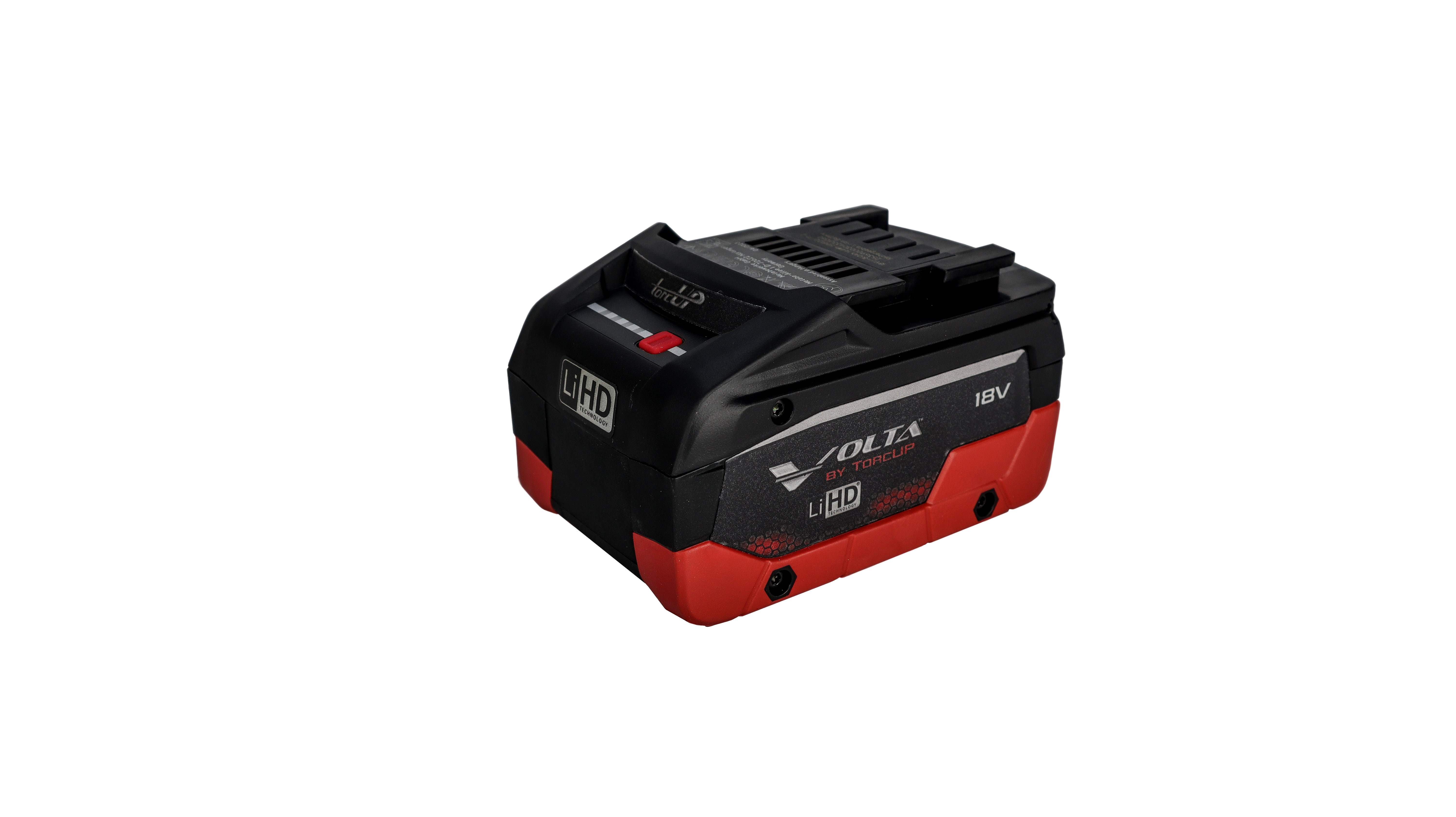

• Lithium Ion 8.0 Ah Rechargeable Battery
• Every Unit Calibrated In ISO17025 Laboratory
• Genuine TorcUP Design

Features:



Alloy Steel Square Drive – The hardened alloy steel square drive is designed for durability and direct socket engagement.
Ergonomic Slip-Resistant Pistol Grip – The pistol grip of the VT Series is engineered to allow for firm and comfortable positioning.
High-Efficiency Brushless Motor – The high-efficiency brushless motor provides longer run-time.

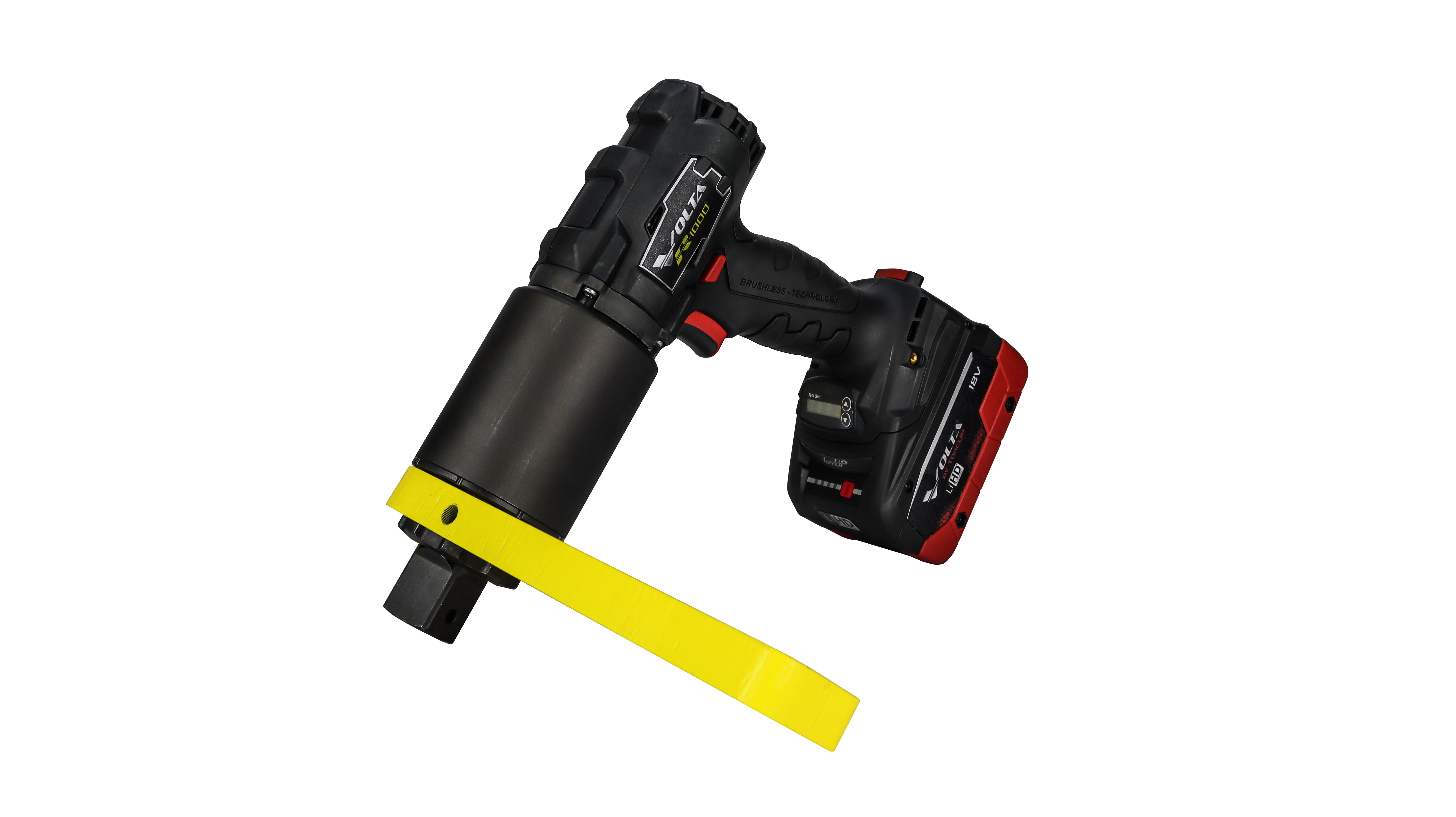

Cast Reaction Arm – The sturdy “non-welded” construction provides a safe and strong reaction point.
Internal Gear Drive – The VT Series has a patented planetary gear design that provides consistent torque with no impacting.
Soft-Start Trigger – The soft-start trigger provides added safety to the operator.

Torque Range

From: 160-670 Nm, 120-500 lbf.ft
To: 1626-8133 Nm, 1200-6000 lbf.ft

Output Speed

Minimum
From: 12.5 rpm
To: 0.9 rpm
Maximum
From: 17.5 rpm
To: 1.3 rpm

Square Drive

From: ¾” sq.dr
To: 1 1/2” sq.dr

Tool Weight

From: 3.1 Kg
To: 19.2 Kg

Tool Dimensions

From: 267.7mm x 195.1mm x 84.3mm
To: 289.1mm x 334.5mm x 127mm

ATTACHMENTS & ACCESSORIES

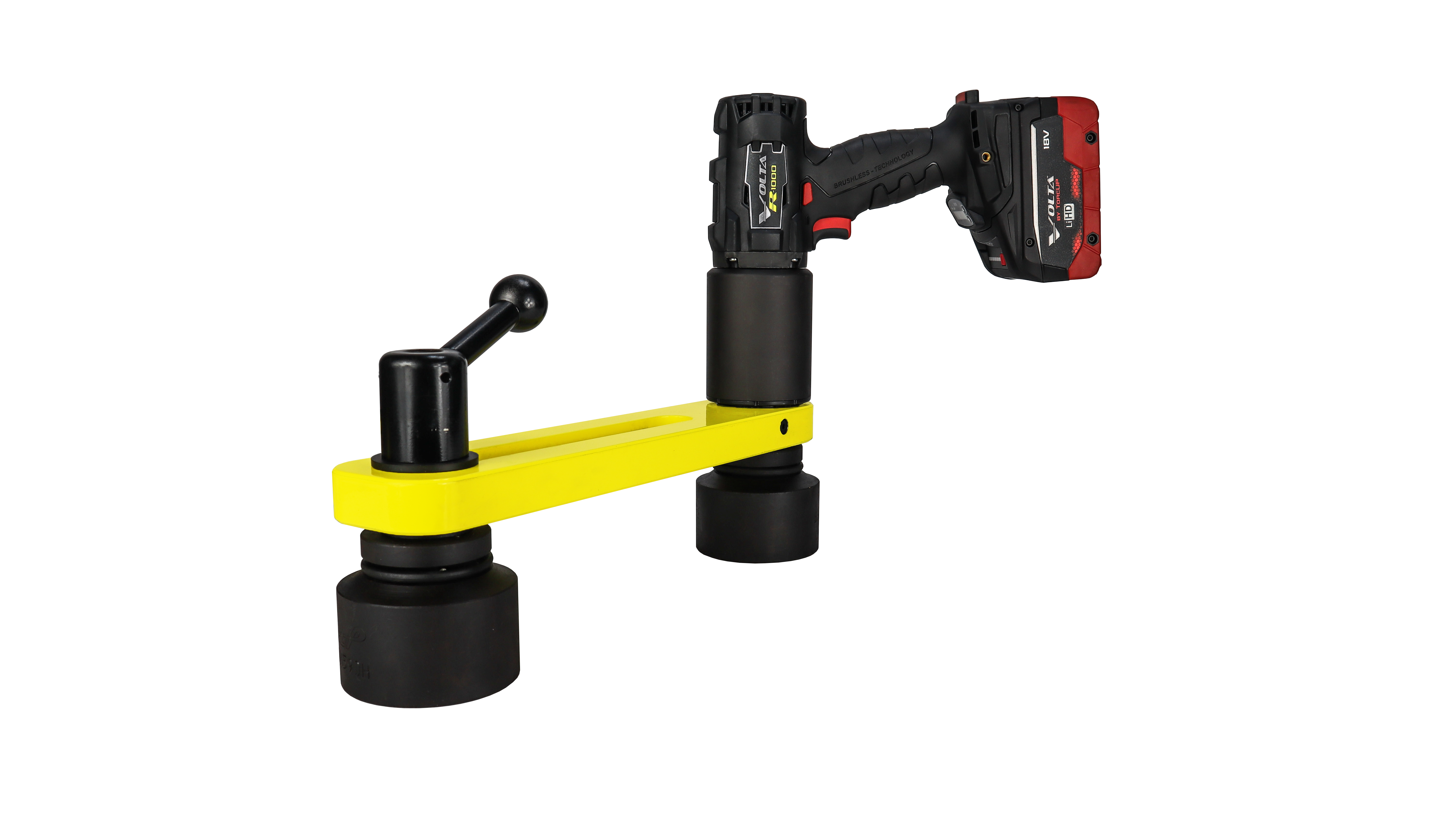

A variety of reaction attachments and accessories are available to aid use, contact RenQuip for details

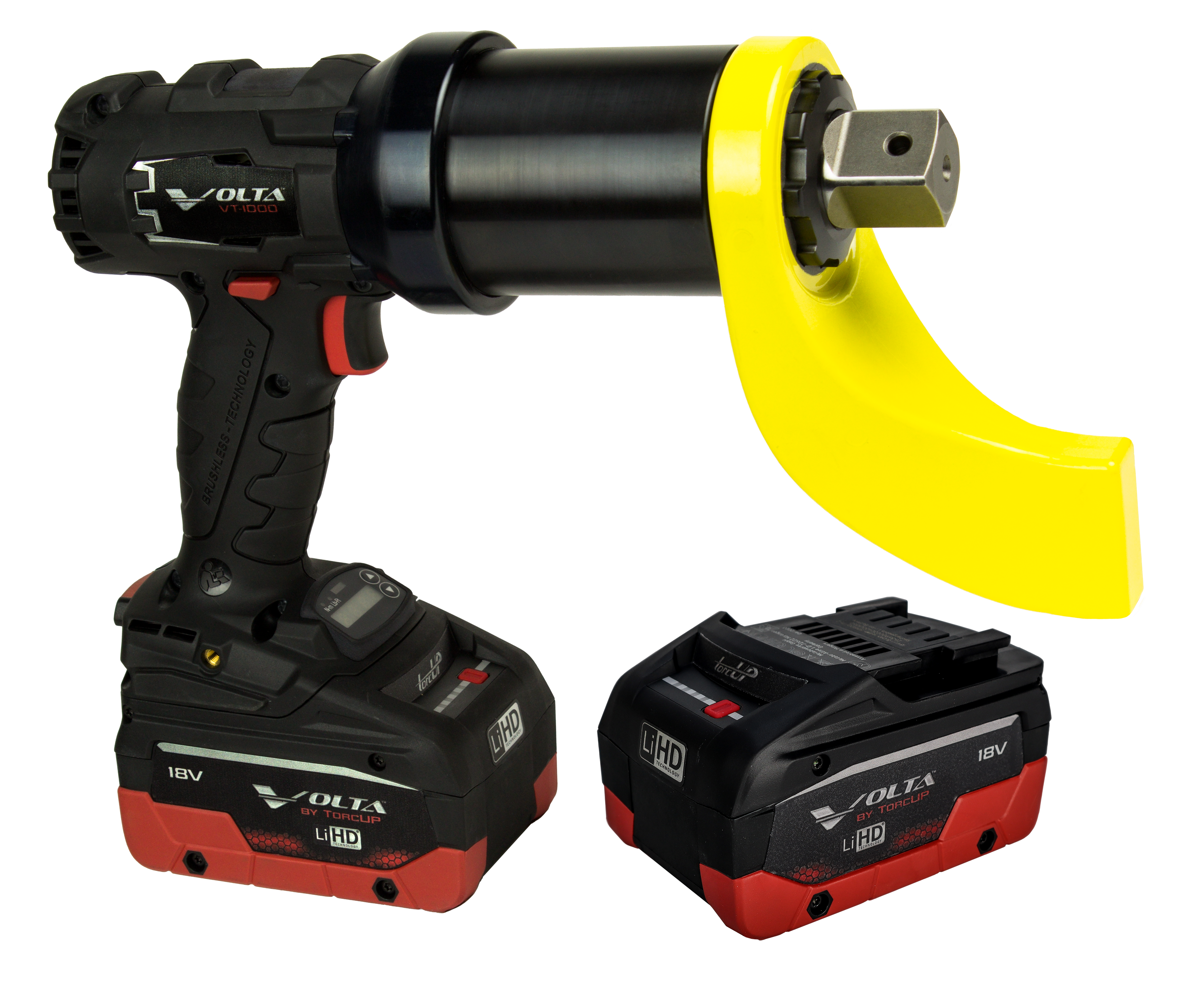

Kit Contents Image
1 x VT Series Battery-Powered Torque Wrench
2 x Batteries
1 x Battery Charger
1 x Standard Reaction Arm
1 x Robust Case
