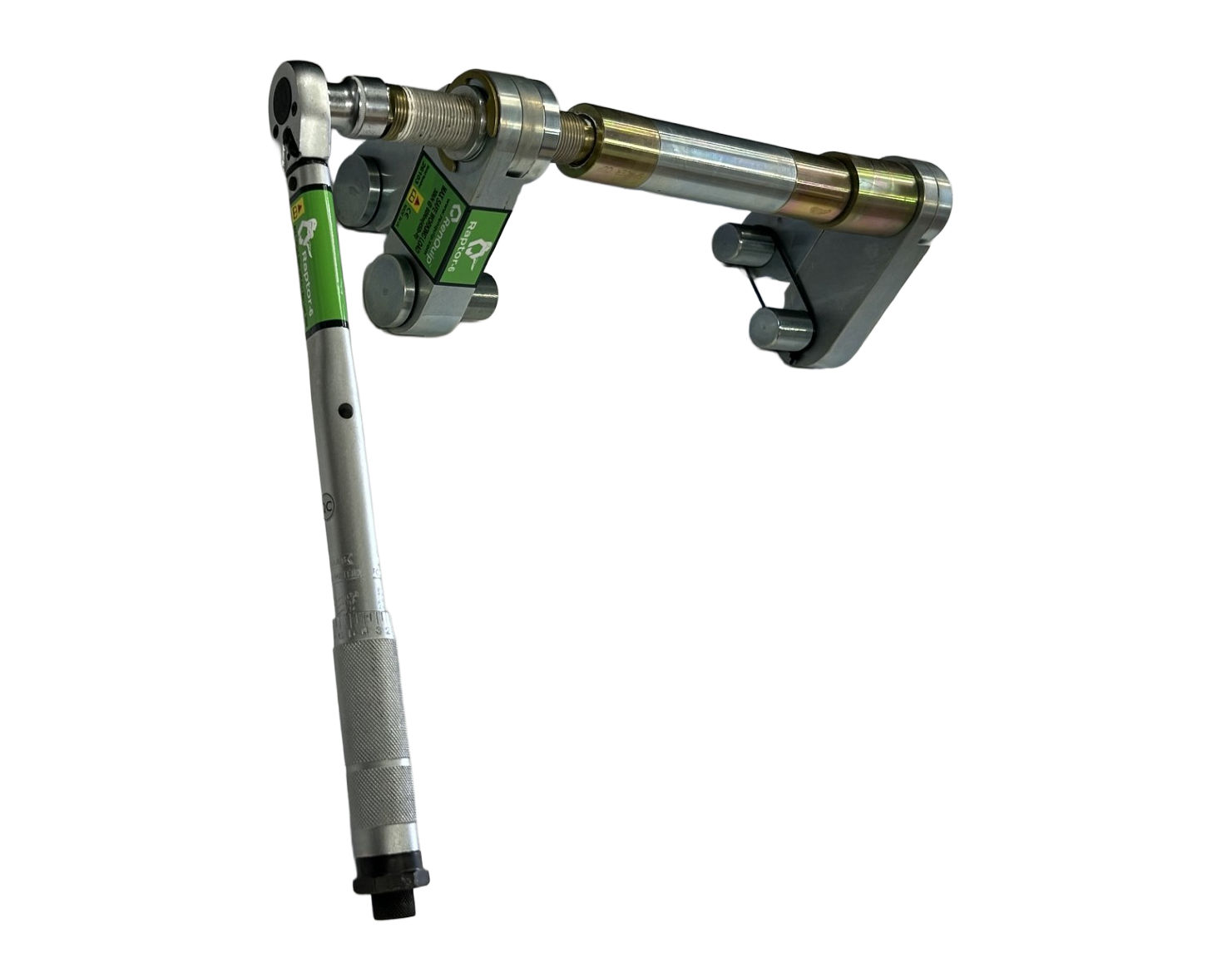

The RenQuip Raptor-6 Valve Removal Flange Spreading Tool is designed to open flange joints by gripping in the flange bolt holes of both flanges and pulling the flanges apart.
This allows the Raptor-6 to be used for the change out of Valves, Spades, Spacers, Blinds, Seal rings and Gaskets.
Engineered for Valve Removal but also capable of Spreading Flanges with a ZERO ACCESS GAP!
The Tool is lightweight and portable making it ideal for use in remote locations.
It is highly recommended that 2 or more Raptor-6 Valve Removal Tools are used together to maintain a parallel Flange joint gap during spreading.
All RenQuip tools are manufactured from the highest quality materials and 100% load tested resulting in highly durable, low maintenance products.
| Max Applied Torque | 60Nm (45ft.lb) |
|---|---|
| Max Spreading Force | 60kN (30kN per tool) |

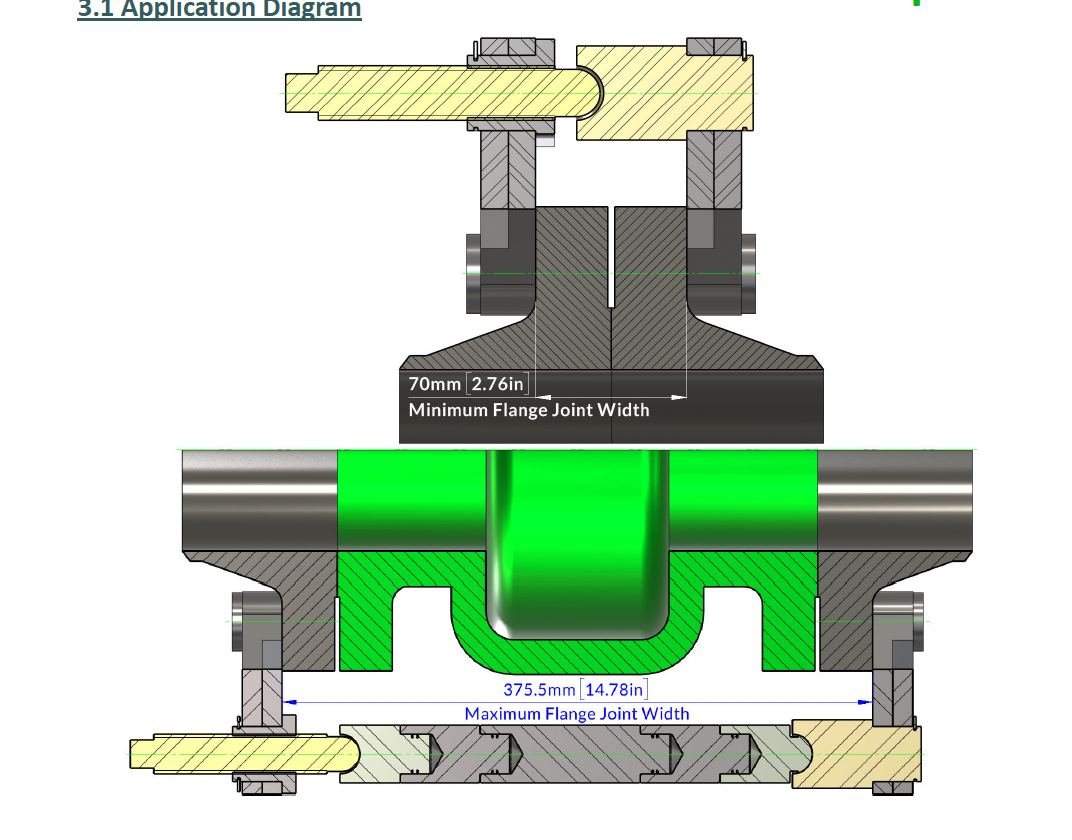

| Minimum Flange Joint Width | 70mm (2.76”) |
| Maximum Flange Joint Width | 375.5mm (14.78”) |
| Kit Weight | 27Kg (29.5lbs) |
| Tool Weight | 8Kg (17.6lbs) |
| Kit Dimensions | 920mm x 510mm x 210mm (36.2” x 20.1” x 8.3”) |

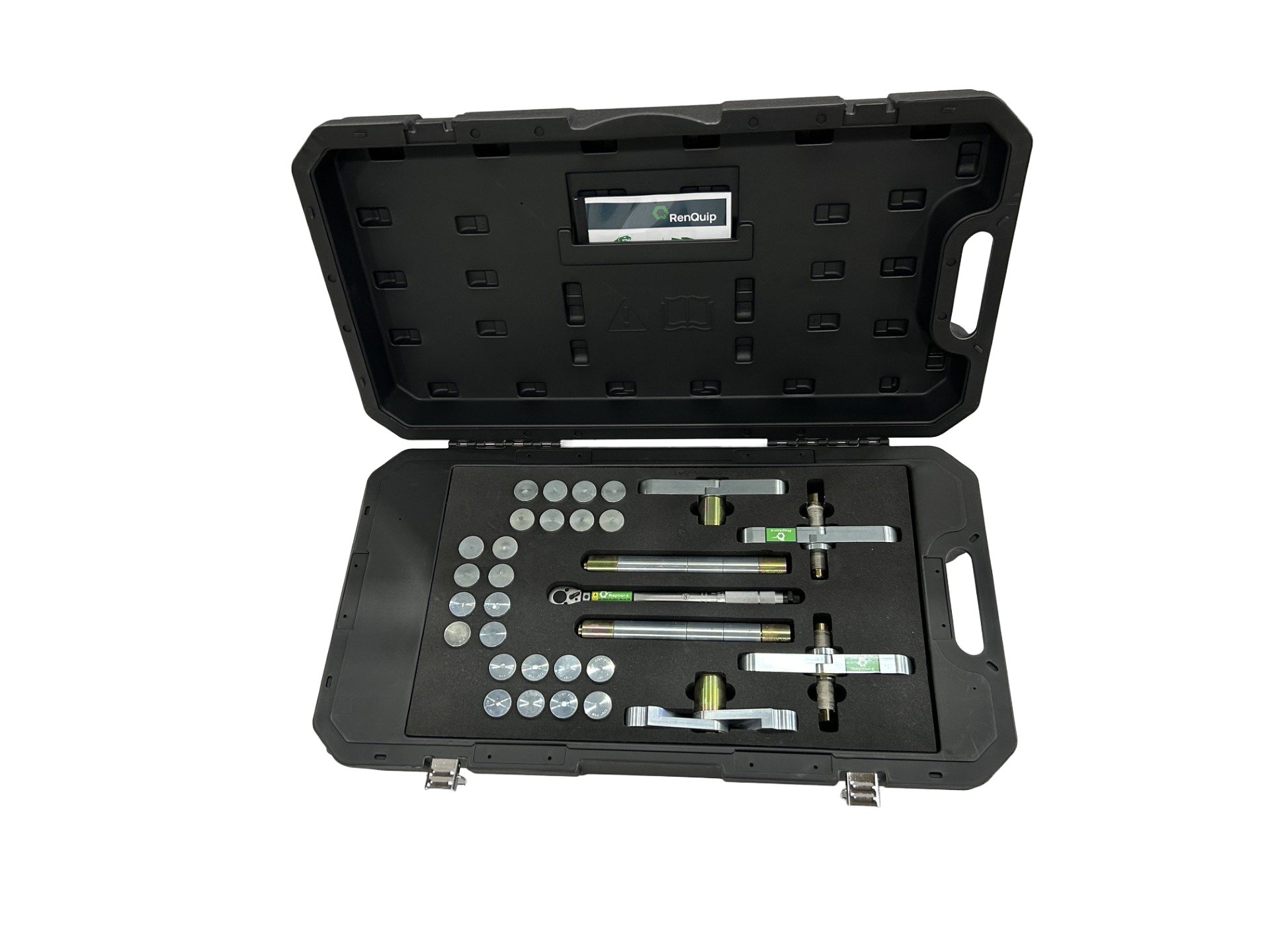

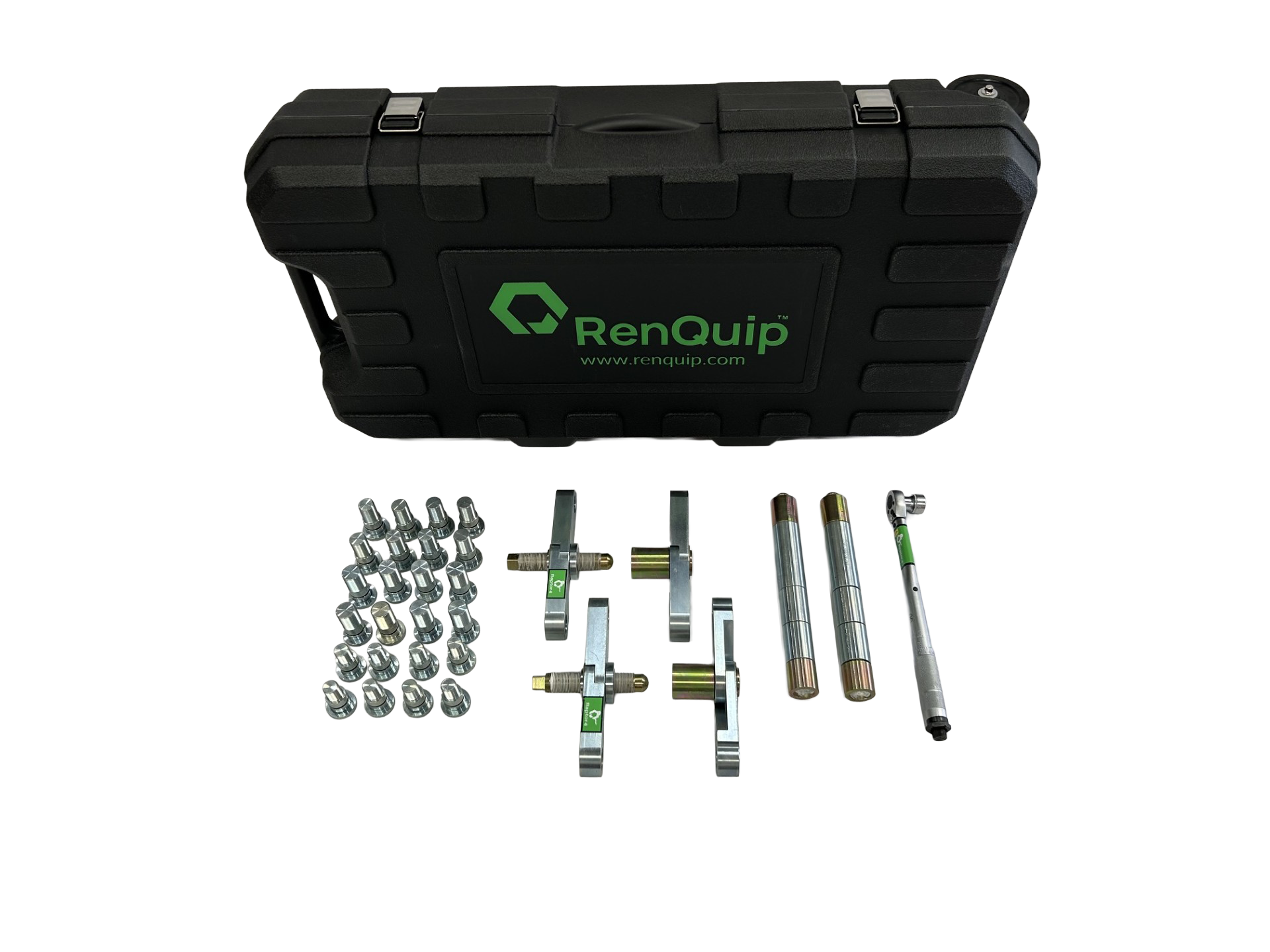

| 2 x Actuator Assembly |
| 2 x Reaction Assembly |
| 2 x Spacer Bar Assembly |
| 1 x Torque Wrench Assembly |

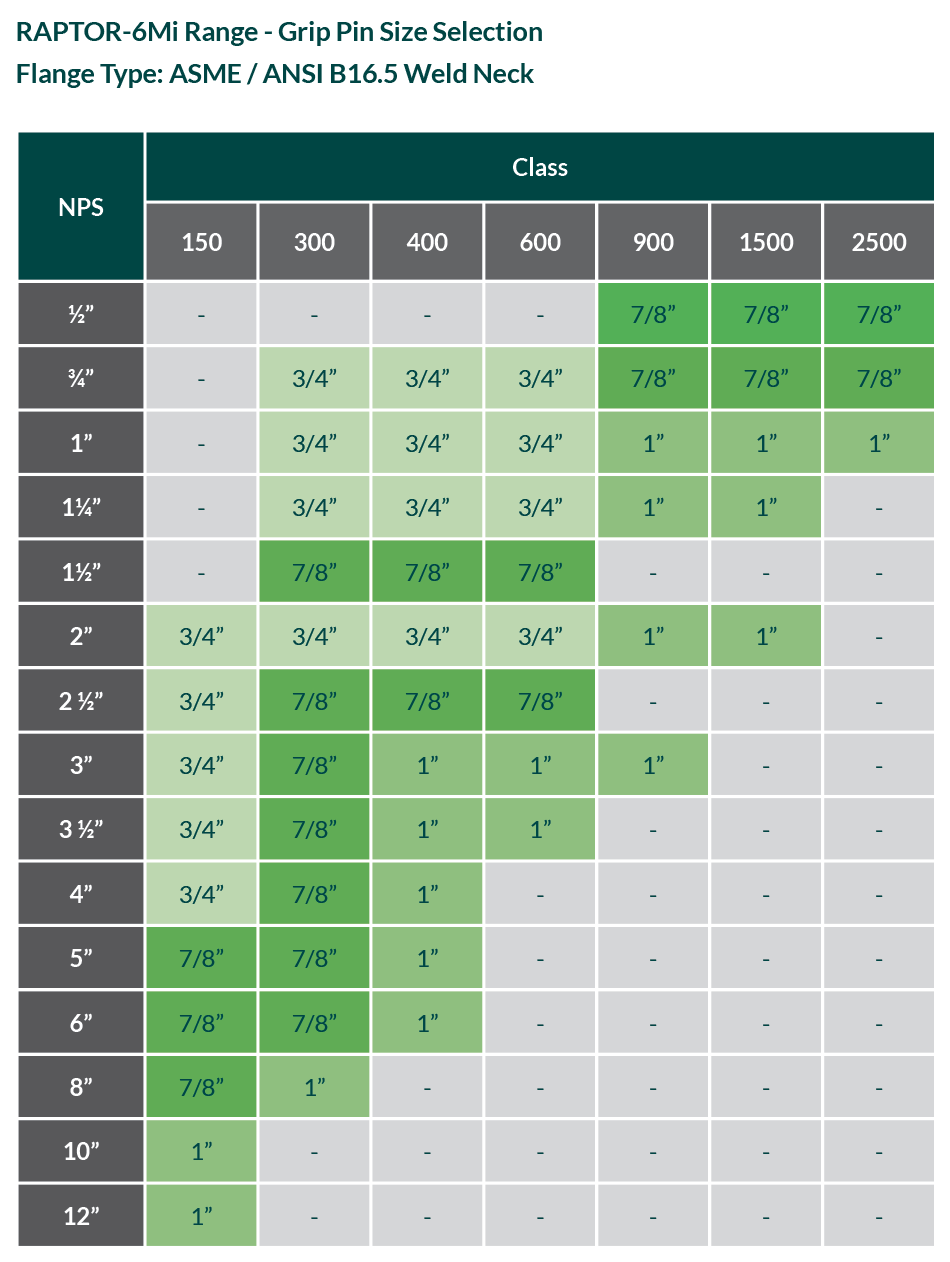

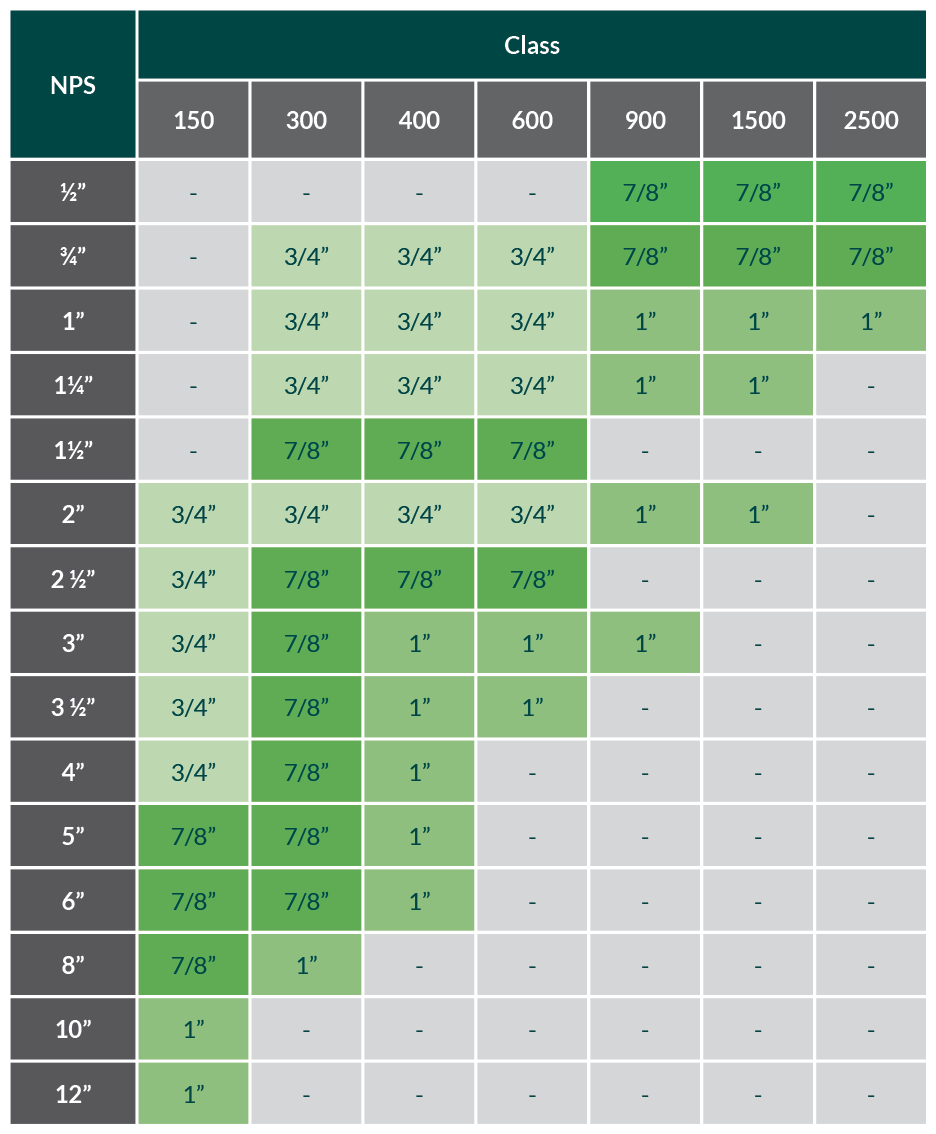

| 4 x 3/4” Grip Pins |
| 4 x 7/8” Grip Pins |
| 4 x 1” Grip pins |
| 1 x Robust moulded carry case |
| 1 x Instruction Manual |
