PTS - PneuTorque® Pneumatically Powered Torque Multiplier

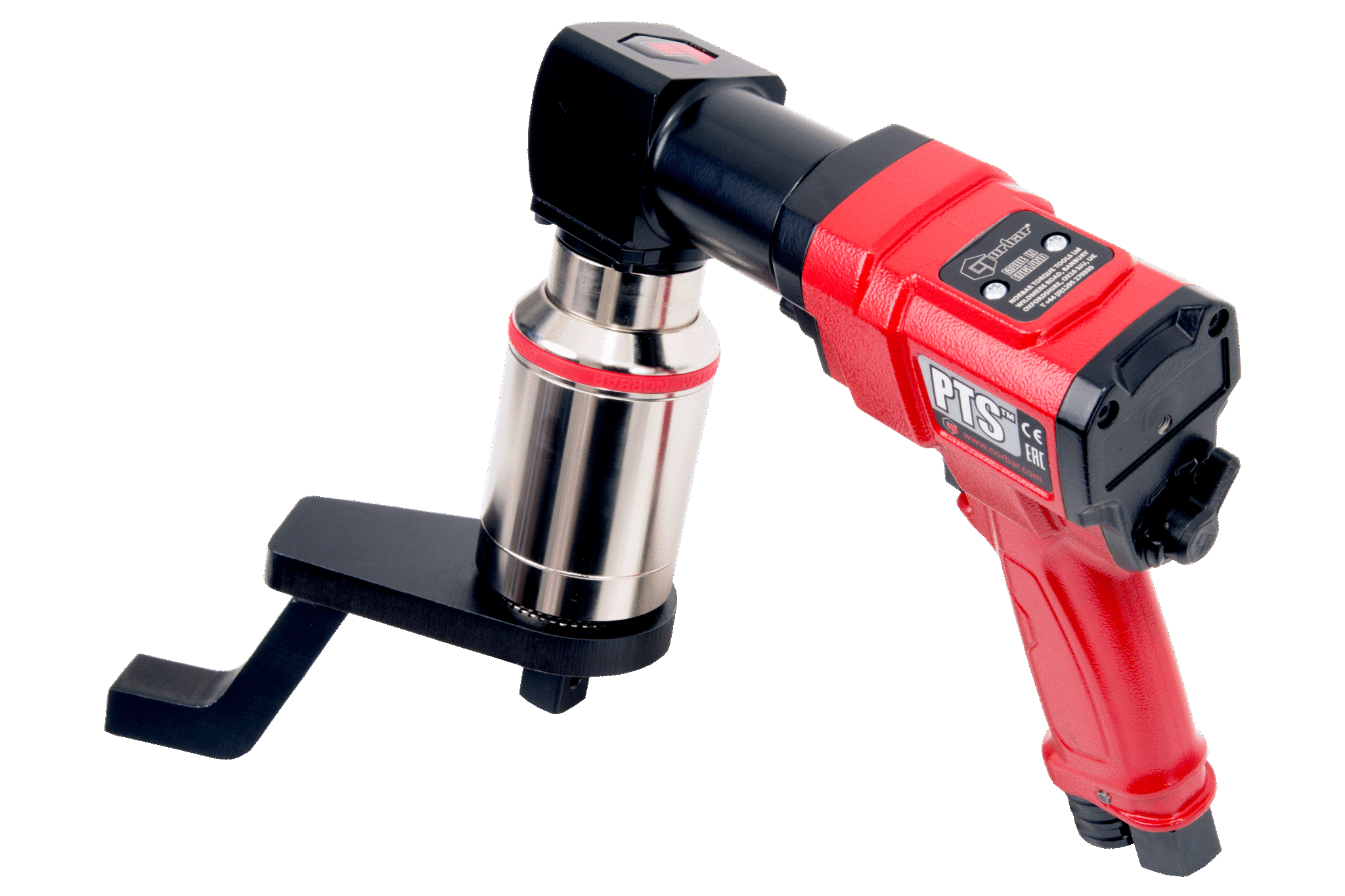

PTS – PneuTorque® Pneumatically powered torque multiplier (PTS)

Features.

Very quiet operation – reducing the need for protection with sound pressure levels from 77dB(A) to 79dB(A)
Supplied as standard with a traceable calibration certificate in a clockwise direction only
Non-impacting – exceptionally low vibration levels (0.343 m/s²), make these tools comfortable and safe for operator use
Fast operation for rapid bolt rundown. Up to 60% faster than PT-72 model
Up to 2.5kg weight saving compared with PT equivalents
Designed to offer excellent power-to-weight ratio
Easily accessible switch for forward and reverse operation
Air coupling designed for safety and rapid operation
Directional exhaust barrel directs exhaust away from operator
±5% repeatability of reading from 20% to 100% of range
Replaceable square drive
Steel reactions supplied as standard. Bespoke reactions available
“Made in the UK”

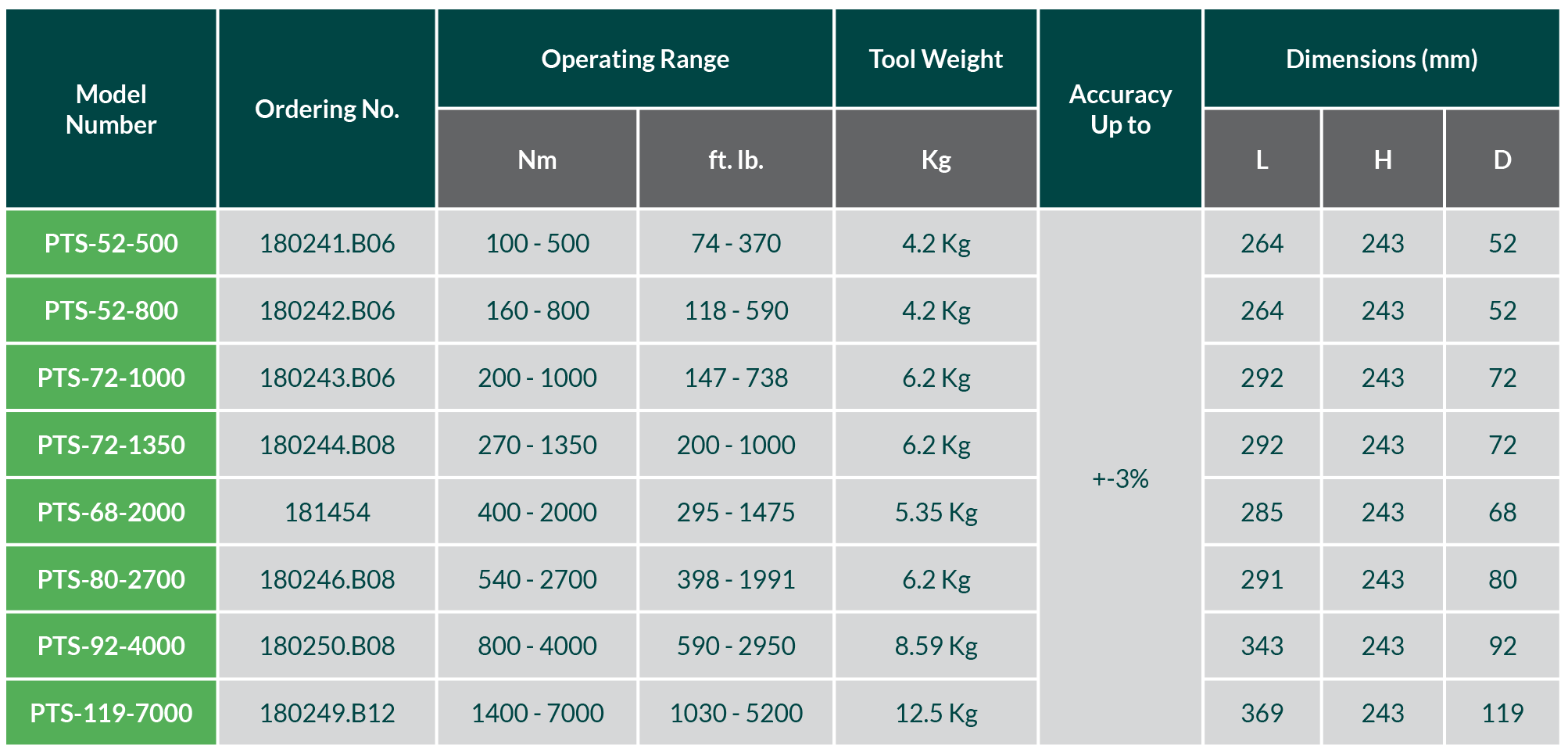

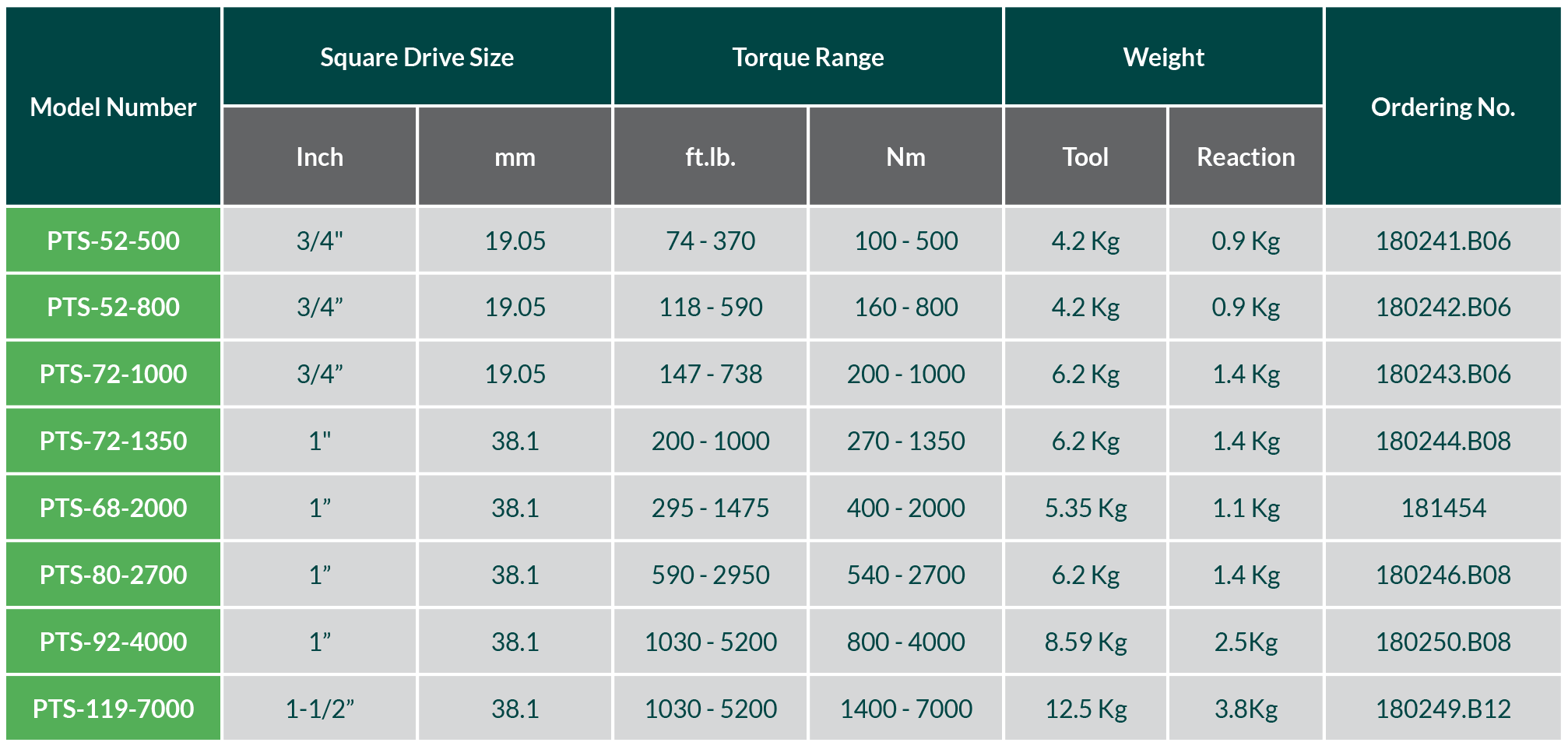

Operating Range	From: 100.00 – 500.00 N·m, 74.00 – 370.00 lbf·ft To: 1400.00 – 7000.00 N·m, 1030.00 – 5200.00 lbf·ft
Accuracy	Up to ±3%
Output Speed	From: 35.5 rpm To: 2.6 rpm
Square Drive	From: 3/4" sq.dr To: 1 1/2" sq.dr
Tool Weight	From: 4.2 Kg To: 12.5 Kg
Reaction Weight	From: 0.9 Kg To: 3.9 Kg
ATTACHMENTS & ACCESSORIES	A variety of reaction plates and adaptors, together with ancillary feet, blades and heads are available to aid use, contact RenQuip for details

1 x PTS Pneumatic Torque Multiplier

PTS – PneuTorque® Pneumatically Powered Torque Multiplier
