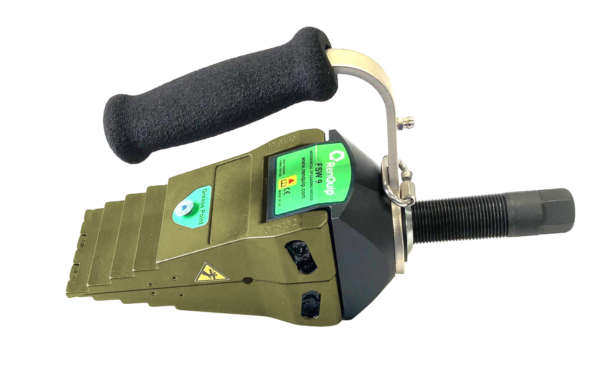

The FSW9-BRONZE Spark Resistant tool is designed to enter the gap between flanges and force the flange open removing the requirement for traditional rigging equipment and certified anchor points.
It is highly recommended that a minimum of 2 FSW9-BRONZE tools are used when spreading flange joints – This allows the operator to control the opening of the flange joint to maintain a parallel gap – this will ensure the tool maintains a secure grip on the flange and prevent pinching the gasket and potential flange face damage.

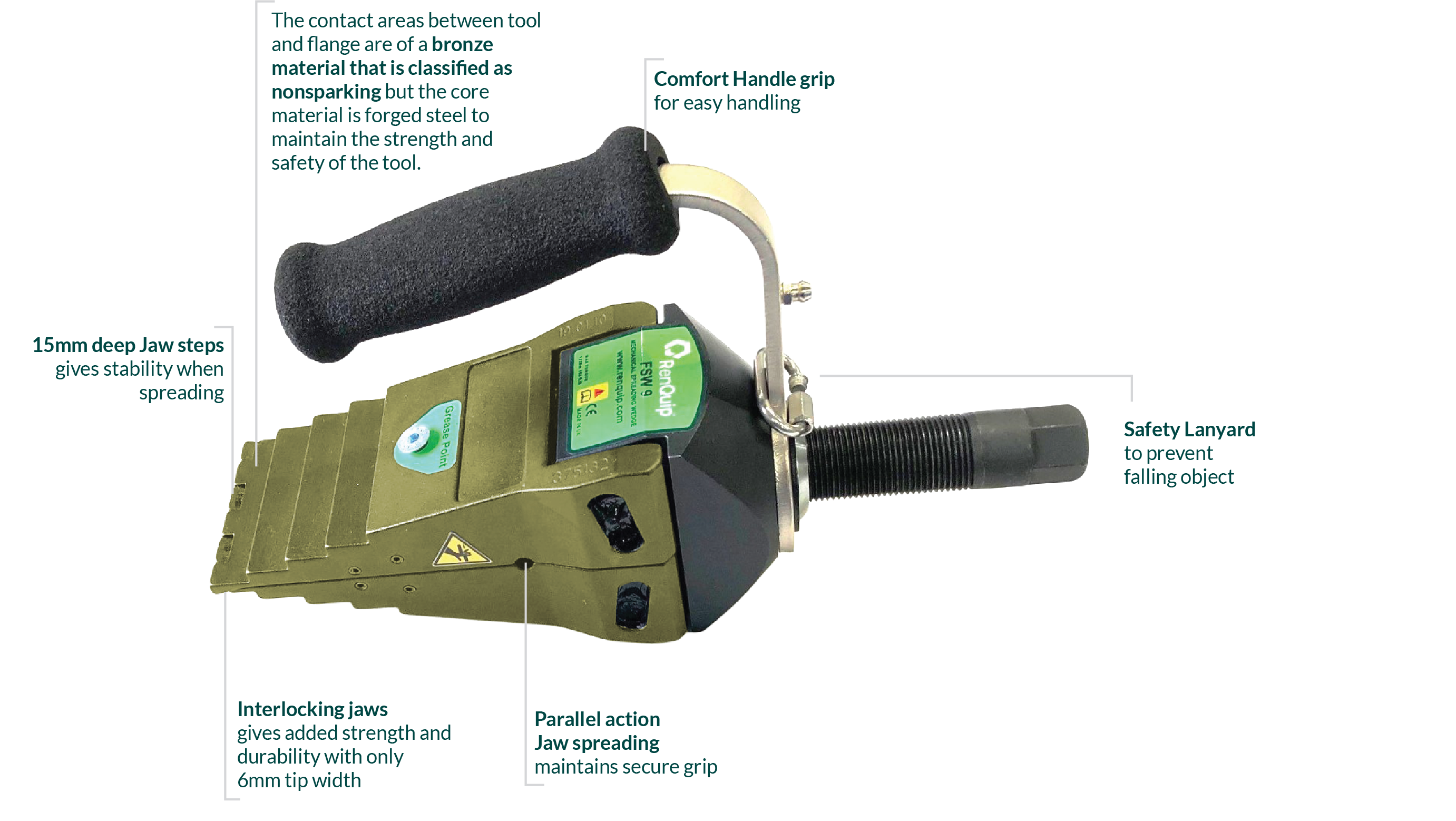

The FSW9-BRONZE is actuated by a mechanical lead screw that creates a linear force on the internal wedge – the internal wedge then forces the jaws of the tool apart.
As it is a mechanical tool it is unaffected by ambient temperature and can operate in harsh environments. The Tool is lightweight and portable making it ideal for use in remote locations.
All RenQuip Spreading wedge tools are designed to be used in conjunction with RenQuip Flange Alignment tools
If more force is required greater multiples of tools can be used or our hydraulic spreading wedges can be used.
All RenQuip tools are manufactured from the highest quality materials and 100% load tested resulting in highly durable, low maintenance products.
