The FSW17K-BRONZE is a Spark Resistant Hydraulic flange spreading tool kit used to separate flange joints for maintenance, Installation, testing and decommissioning.

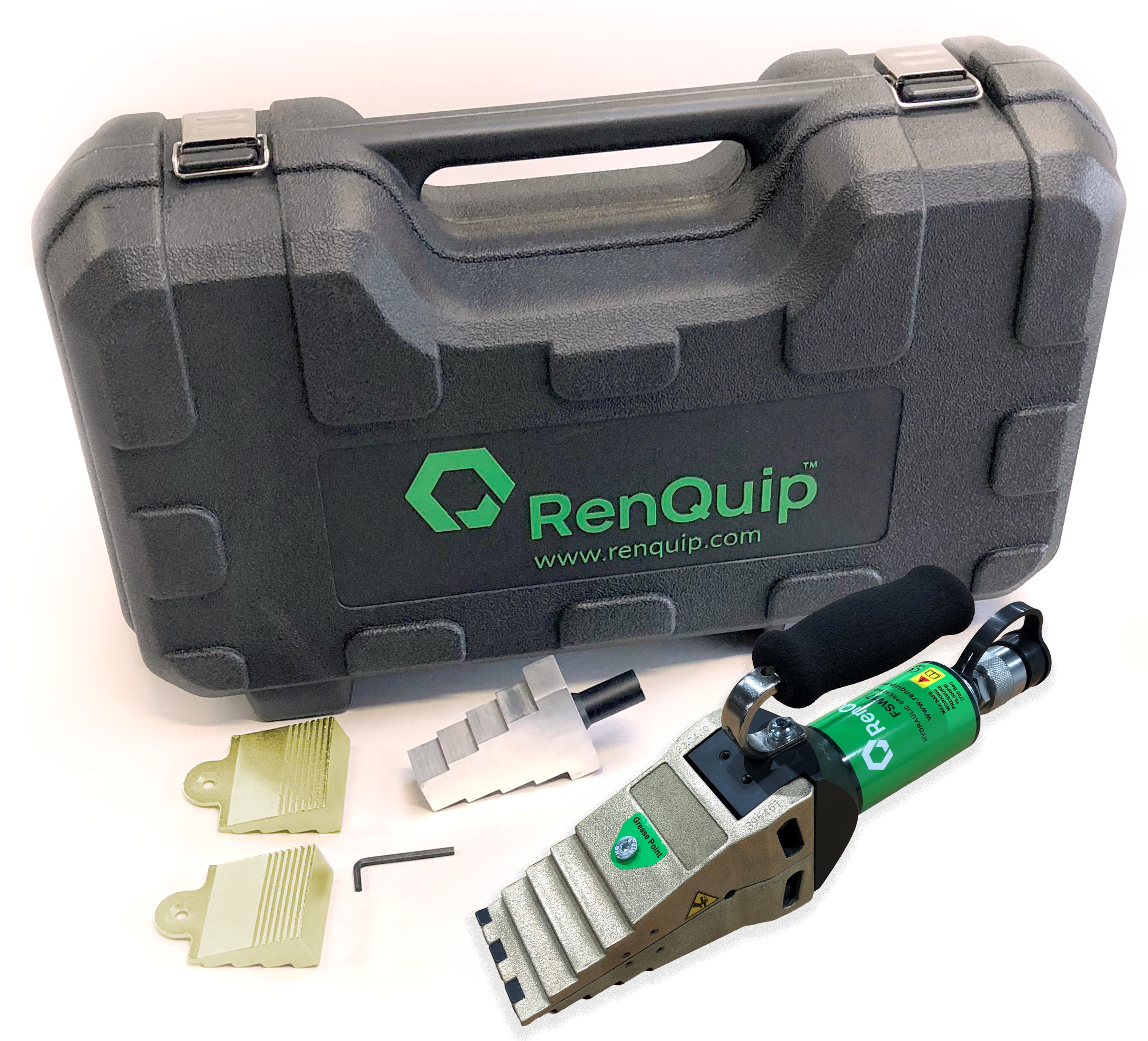

The kit contains a FSW17 BRONZE spreading wedge Tool, bronzed stepped blocks, Non Ferrous safety block and safety lanyard but a hydraulic pump and hose will be required to operate the tool, it is packaged in a robust carry case for easy transport and storage.
The FSW17 BRONZE:
The FSW17 BRONZE produces a maximum spreading force of 163kN (36644lbf) when the maximum hydraulic pressure of 700bar (10,000PSI) is applied.
A powerful and portable Hydraulic tool, the FSW17 BRONZE weighs only 7Kg (15.4lbs) and is the correct hydraulic tool for medium and small sized flange joints that require spreading.
A Spark Resistant Hydraulic Flange Spreading Wedge actuated by 700bar hydraulics.
The FSW17-Bronze flange spreading wedge can enter a flange joint access gap as small as 6mm and produce a maximum force of 326kN when used in pairs (as recommended) to push the mating faces of flanges apart. The FSW17-Bronze can create a gap up to 81mm between flange faces with the stepped blocks fitted facilitating replacement of gaskets, seal ring’s, or other flange face maintenance and testing.
| Maximum Spreading Force | 163kN (36644 lbf) |
|---|---|
| Maximum Applied Pressure | 700Bar 10,000PSI |
| Maximum Spreading Distance (with stepped blocks) | 81mm (3.19”) |
| Minimum Flange Gap | 6mm (0.24”) |
| Jaw Width | 66mm (2.6”) |
| Maximum Wedge Protrusion | 38mm (1.50”) |
| Tool Weight | 7Kg (15.4lbs) |
| Tool Dimensions | 76mm x 155mm x 350mm (3.0” x 6.1” x 13.8”) |
| Kit Weight | 12Kg (15.4lbs) |
| Kit Dimensions | 580mm x 340mm x 180mm (22.8” x 13.4” x 7.1”) |
| 1 x FSW17 Bronze Jaw Tool |
| 1 x Non Ferrous Safety Block |
| 1 x Safety Lanyard |
| 2 x Bronze Stepped Blocks with securing screws |
| 1 x Instruction Manual |
| 1 x Robust moulded carry case |
