The FSW17-BRONZE Spark Resistant tool is design to enter the gap between flanges and force the flange open removing the requirement for traditional rigging equipment and certified anchor points.
It is highly recommended that a minimum of two FSW17-BRONZE tools are used when spreading flange joints – This allows the operator to control the opening of the flange joint to maintain a parallel gap – this will ensure the tool maintains a secure grip on the flange and prevent pinching the gasket and potential flange face damage.
The FSW17-BRONZE is actuated by hydraulic pressure that pushes a piston creating a linear force on the internal wedge – the internal wedge then forces the jaws of the tool apart.

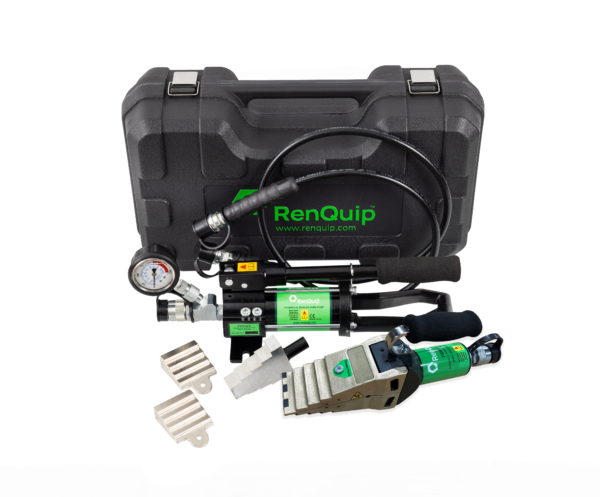

Using high pressure hydraulics allows the operator to generate very high spreading forces with a hand pump (included in the FSW17H-BRONZE kit) – this removes the requirement for an external power source. The Tool is lightweight and portable making it ideal for use in remote locations.
All RenQuip Spreading wedge tools are designed to be used in conjunction with RenQuip Flange Alignment tools.
All RenQuip tools are manufactured from the highest quality materials and 100% load tested resulting in highly durable, low maintenance products.
